Full Guide To Multi-Point Locks Structure Features And Installation

A Multi-Point Lock is a system that achieves simultaneous multi-point locking through an internal linkage mechanism. Its typical structure includes a lock cylinder or handle, transmission rods, and upper and lower locking points. When the operator rotates the handle, the rods drive multiple locking points to move at the same time, allowing the door panel to be evenly pressed at multiple positions for stable and reliable closure.

Structure of a Multi-Point Lock

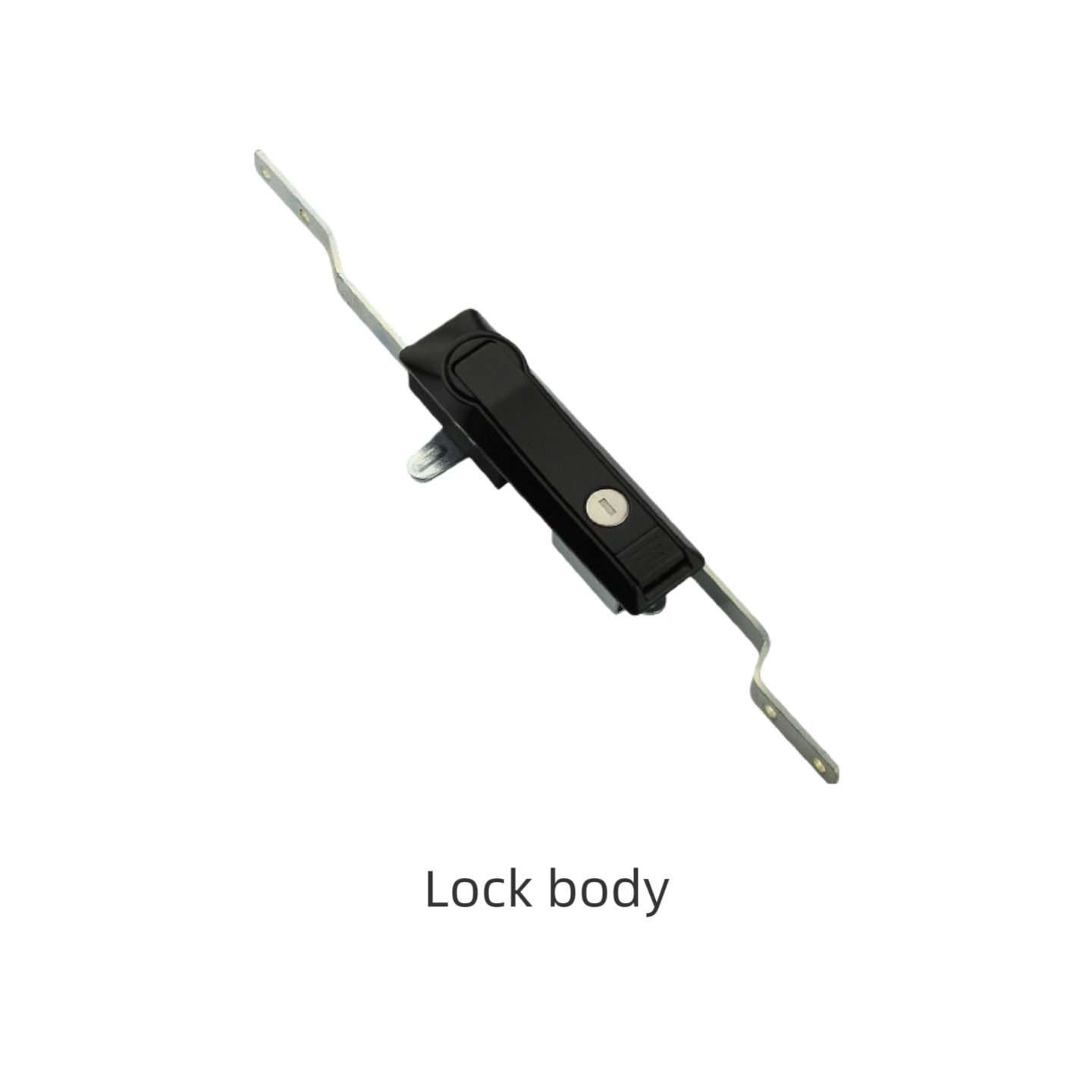

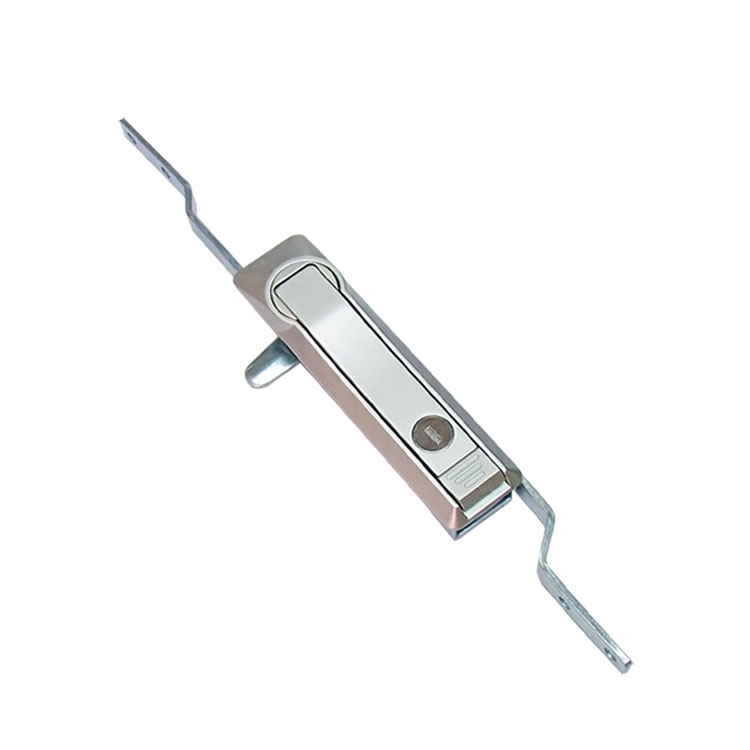

It mainly consists of a lock-body, rods, and accessories. Customers can purchase the complete set or order individual parts as needed.

Features of Multi-Point Locks

1.Enhanced enclosure sealing

Through upper or three-point linkage locking, the Multi-Point Lock ensures the door panel is tightly attached to the equipment frame, preventing dust, moisture, or debris from entering and protecting internal components.

2.Improved structural stability

Multi-point or three-point locking distributes force evenly across the door panel, preventing deformation or loosening while maintaining overall equipment stability.

3.Increased operational safety

A secure locking mechanism prevents accidental opening of the door, reducing risks and protecting both operators and equipment.

4.Easy maintenance and operation

The Multi-Point Lock is simple to operate—one rotation controls multiple locking points, saving maintenance time and improving efficiency.

Common Applications of Multi-Point Locks

Multi-Point Locks are widely used in environments requiring high sealing and protection, such as:Communication cabinets, power distribution boxes, and control cabinets.

Their multi-point locking enhances door-to-frame fit, effectively improving dust and water resistance to safeguard internal precision components against harsh environments. Many designs also include anti-mistake-opening mechanisms, balancing safety with protective performance.

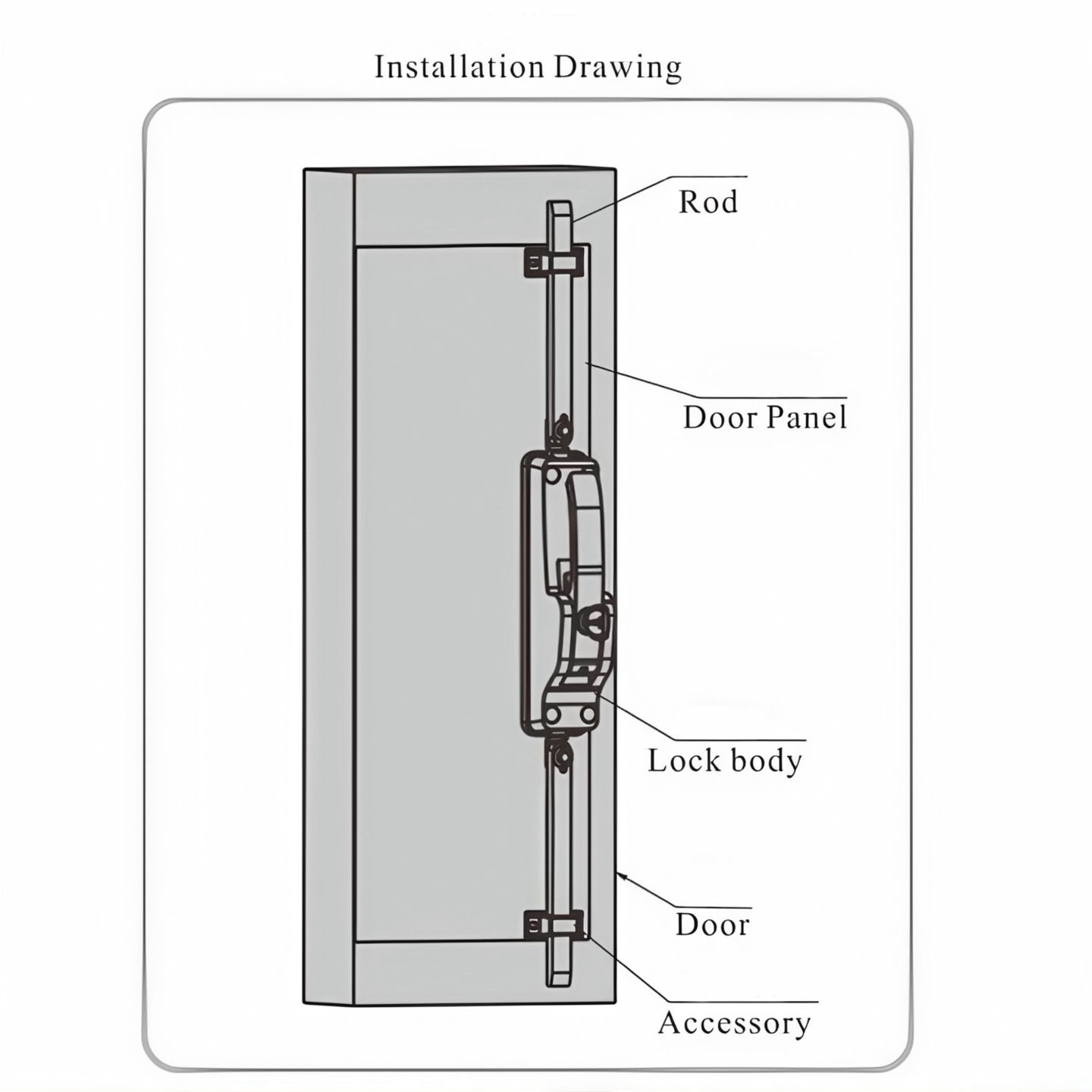

Installation Guide for Multi-Point Locks

1.Confirm position

Determine the mounting position of the lock-body and mark the installation holes.

2.Drill holes

Drill according to the markings. Hole size must fully match the bolts.

3.Install the lock-body

Insert the lock-body into the opening and loosely fasten it with bolts.

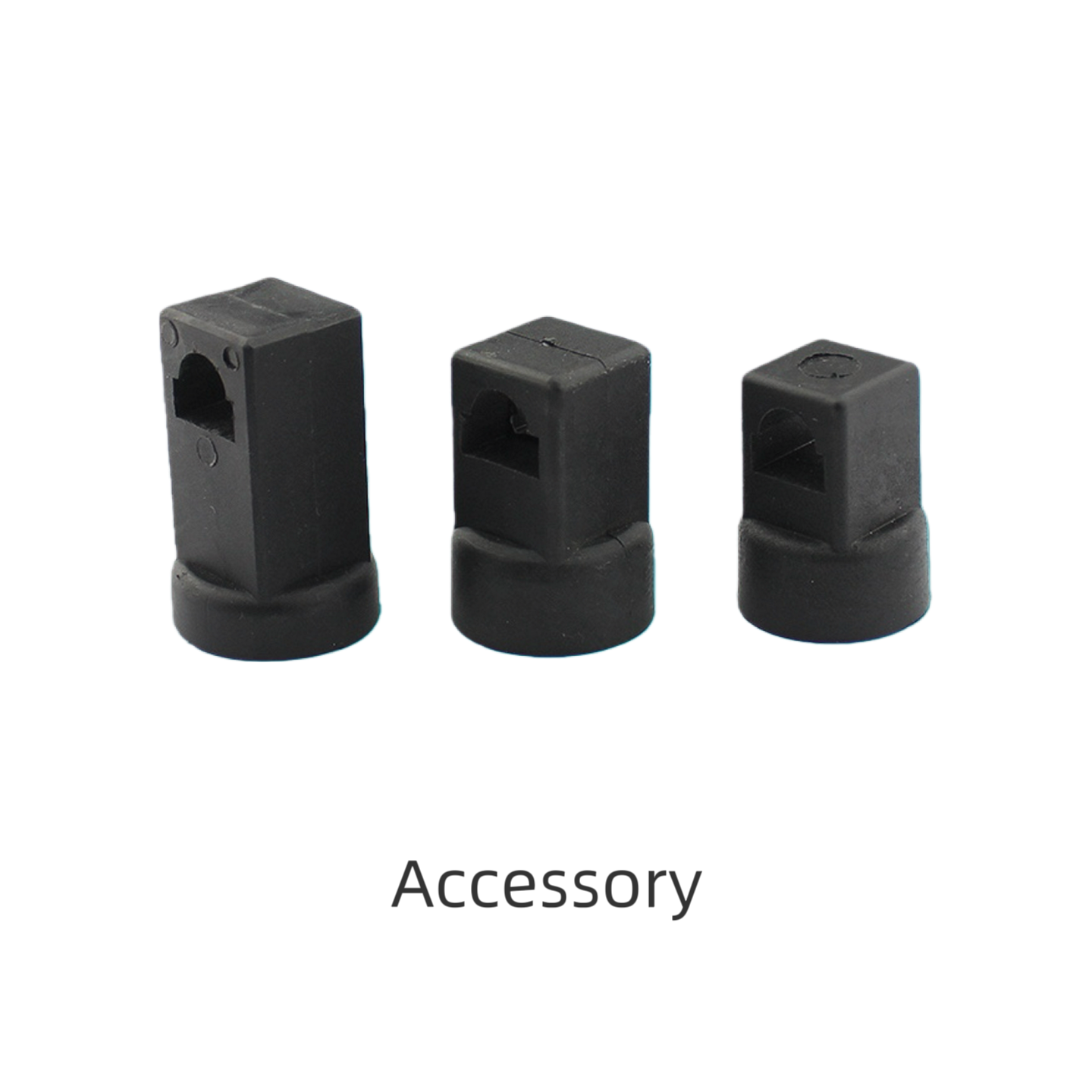

4.Install accessories and rods

Fix the accessories, then connect the rods to the lock-body and the parts requiring locking.

5.Adjust locking action

Adjust rod length and position to ensure smooth locking movement.

6.Check and fine-tune

Ensure all connection points are secured and the locking function is reliable.
