Views: 0 Author: Site Editor Publish Time: 2026-07-24 Origin: Site
In industrial equipment, a door does more than simply provide access. It directly affects the equipment’s sealing performance, operational stability, and long-term reliability. As automation equipment, energy storage systems, medical devices, and semiconductor equipment continue to develop toward higher performance and higher protection levels, traditional locks are often unable to meet the requirements for continuous compression and stable sealing. Therefore, Compression Handles, which can provide continuous clamping force during the locking process, have gradually become an important component in many industrial equipment applications.
Compared with conventional locks, the key feature of a Compression Handle is not only securing the door panel, but also generating additional compression during the locking process. Through an internal cam or inclined mechanism, the rotational movement is converted into axial pulling force, allowing the door panel to move closer to the enclosure while applying uniform pressure to the sealing gasket. This improves the contact between the door and the enclosure and helps enhance the stability of the overall sealing system.
For equipment requiring dustproof, waterproof, moisture-resistant, or stable internal environments, Compression Handles play an especially important role. Applications such as outdoor cabinets, environmental test chambers, energy storage cabinets, and laboratory equipment are usually used together with rubber sealing strips. If the sealing strip is compressed unevenly, local gaps may occur, affecting the overall protection performance of the equipment. The continuous compression force provided by a Compression Handle helps maintain a more uniform gasket compression state and improves sealing performance.
In addition to improving sealing performance, Compression Handles can also help reduce door panel loosening caused by vibration. For automation equipment, engineering machinery, mobile equipment, and industrial cabinets, vibration is often unavoidable during operation. If gaps exist between the door panel and the enclosure, it may not only cause noise but also affect the equipment’s protection capability. By maintaining continuous preload force, Compression Handles help reduce door movement and improve long-term operational stability.
As industrial equipment applications continue to expand, different industries have developed specific requirements for Compression Handles.
Semiconductor equipment typically requires long-term maintenance of clean environments. Therefore, locking components must provide excellent corrosion resistance, structural stability, and long service life to meet the requirements of cleanrooms and precision manufacturing equipment.
Equipment such as temperature chambers, incubators, and refrigeration systems usually work with sealing systems to maintain stable internal conditions. Stable compression force helps keep sealing strips properly compressed and supports consistent equipment performance.
Energy storage cabinets, charging stations, and communication cabinets are often installed outdoors and need to withstand rain, dust, humidity, and temperature fluctuations. In these applications, Compression Handles are usually combined with sealing systems to improve the overall protection performance of the equipment.
Automation equipment, protective enclosures, and industrial cabinets often require frequent opening and closing during operation and maintenance. In addition to reliable compression performance, Compression Handles must also provide convenient operation, durability, and long-term reliability.

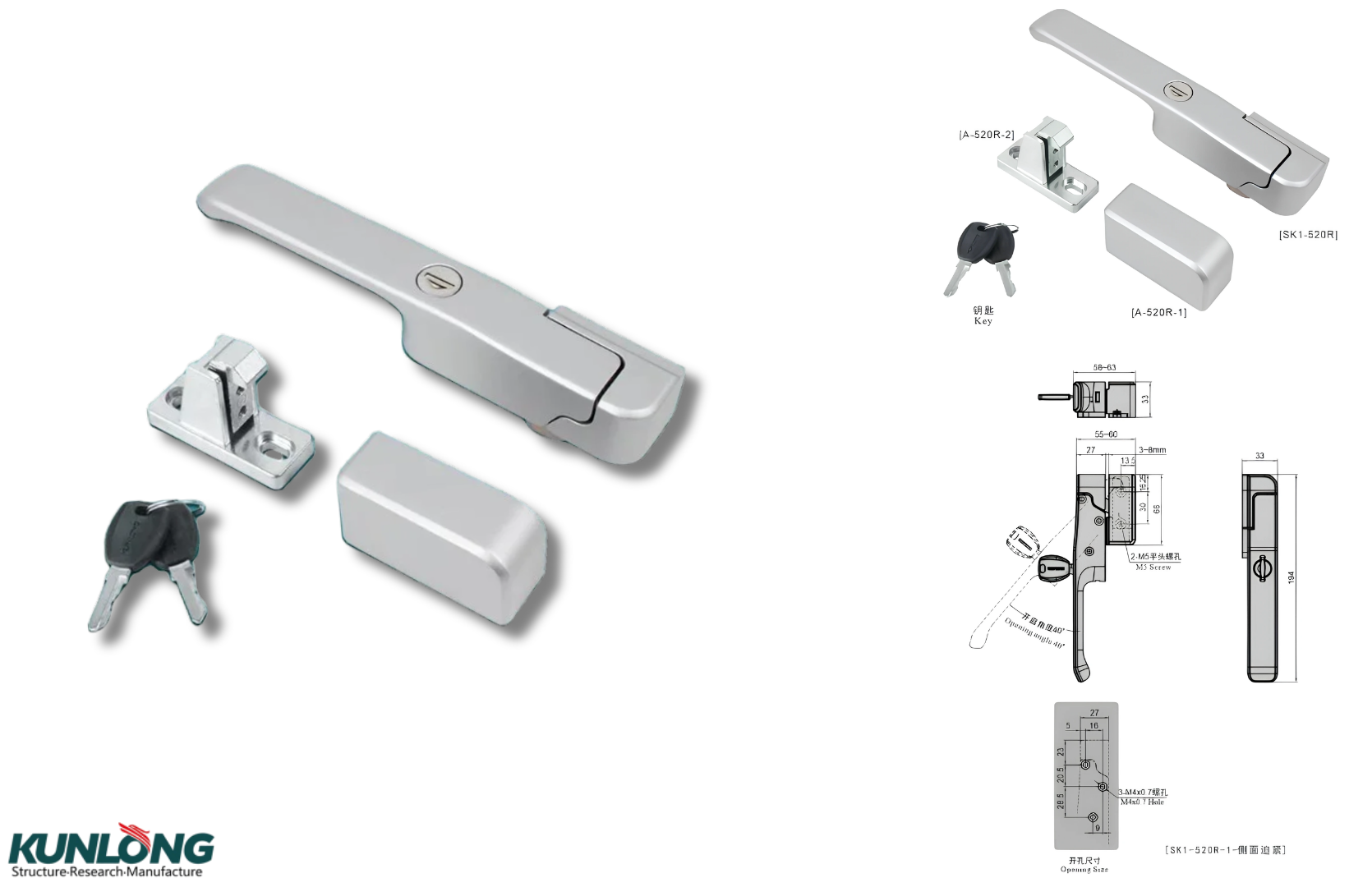

1.Made of SUS304 stainless steel with a mirror-polished surface, providing excellent corrosion resistance and improving long-term reliability in demanding environments.
2.Adjustable compression travel allows compatibility with different door structures and sealing gasket thicknesses, helping achieve more uniform and stable sealing performance.
3.Extended handle design reduces operating force and improves user experience during frequent opening and closing of equipment.

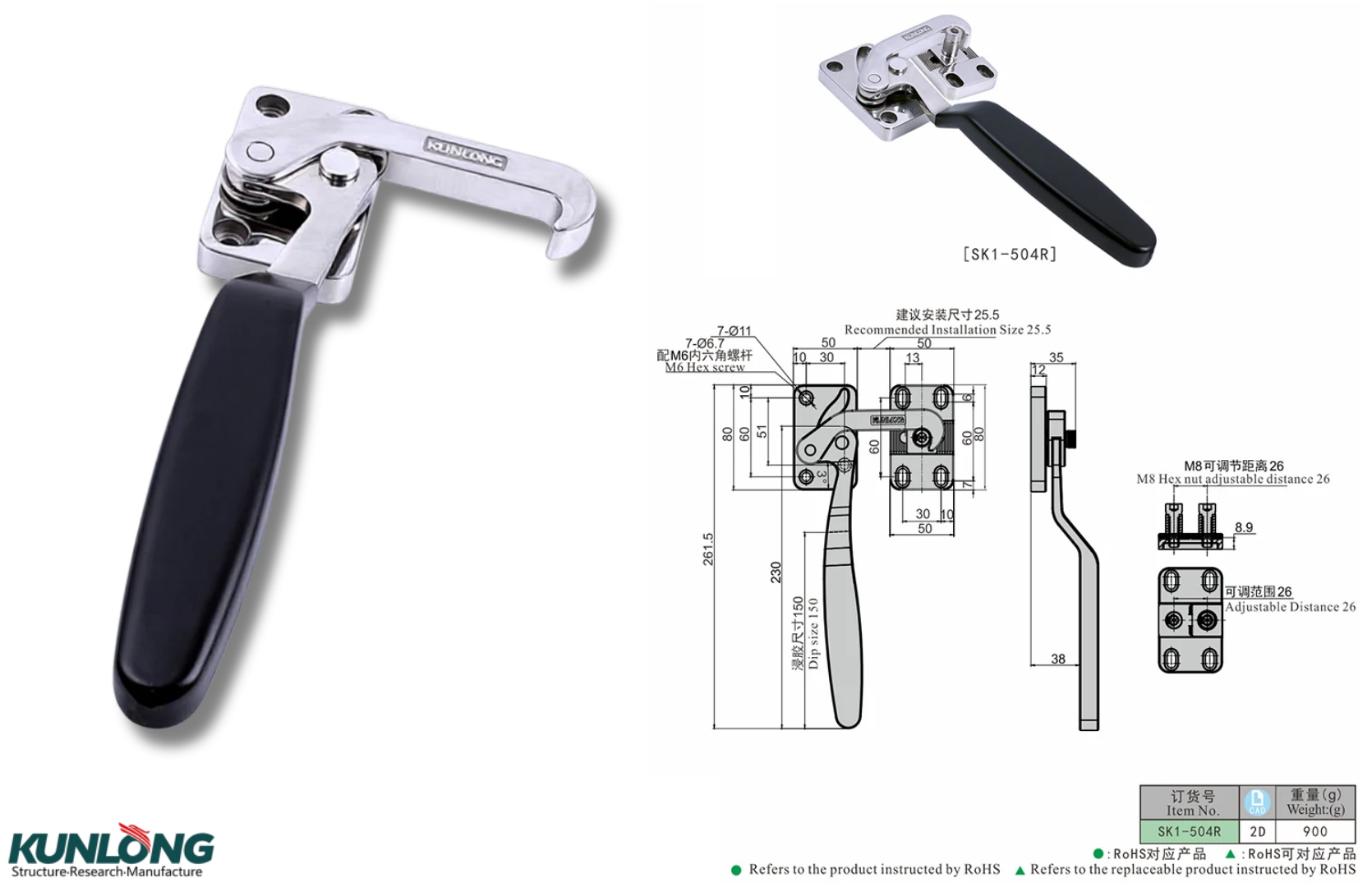

1.Provides a maximum compression travel of approximately 12 mm, meeting the compression requirements of different door structures and sealing systems while improving overall sealing performance.
2.Supports horizontal and vertical installation adjustment, reducing installation errors and improving assembly efficiency and installation accuracy.
3.Suitable for thicker door panel designs, providing stable and reliable locking performance for industrial cabinets, electrical cabinets, and various equipment enclosures.

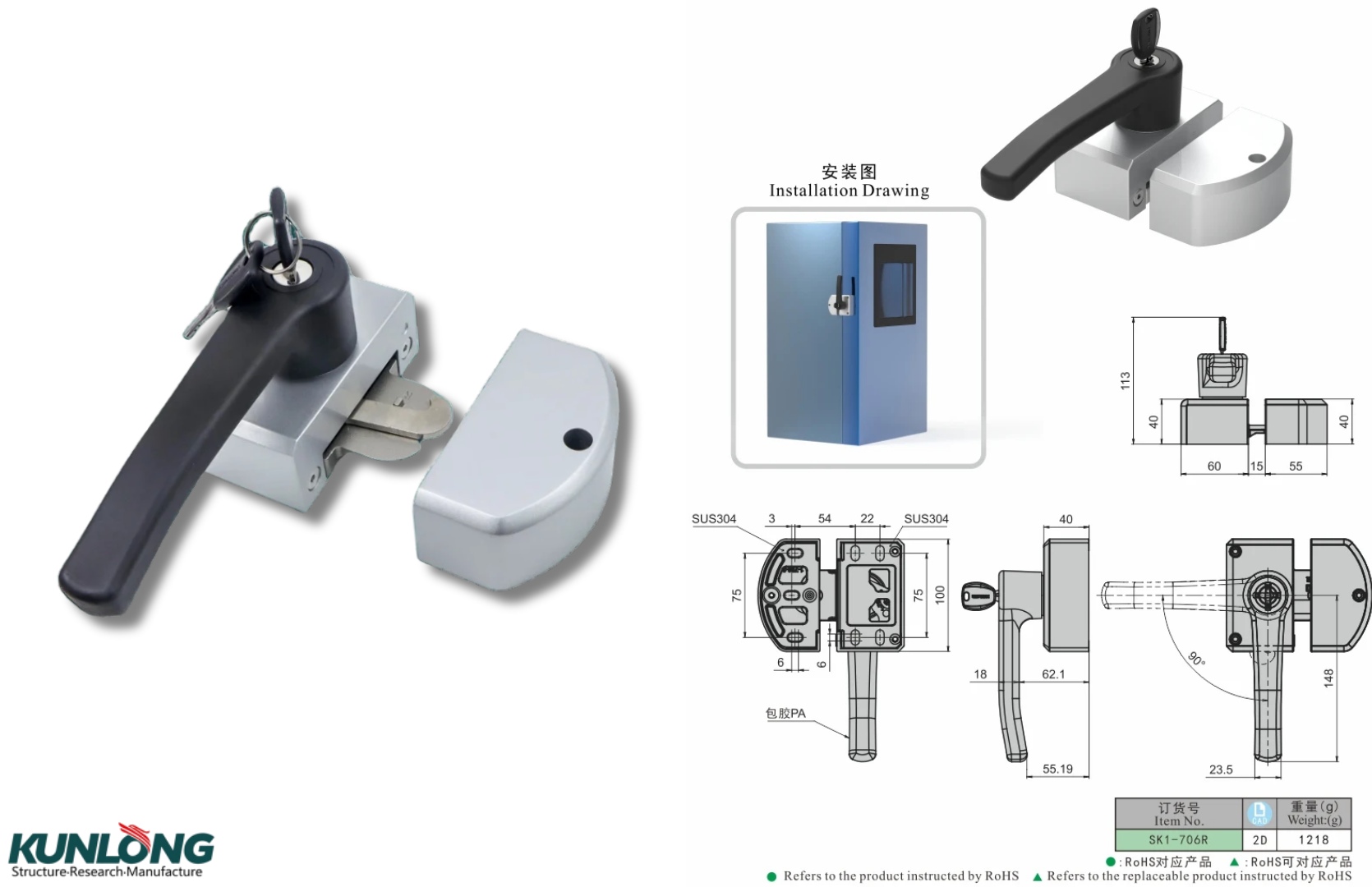

1.Side-mounted structure makes it suitable for equipment with limited installation space, providing greater flexibility in door design.
2.Can be combined with different lock receivers to achieve side or front compression, meeting different enclosure sealing and locking requirements.
3.Compact structure and flexible installation design provide reliable compression performance while optimizing overall equipment layout.
As industrial equipment continues to develop toward higher performance and higher protection levels, selecting the right Compression Handle for specific applications can provide more reliable support for equipment safety and long-term operation. Choose ShangKun’s high-quality industrial hardware solutions to help equipment achieve more stable and reliable performance.
