Folding Handles in Industrial Equipment: A Space-Saving Design Solution

As automation equipment, industrial cabinets, and control systems continue to become more compact, limited installation space needs to accommodate more functions, placing higher demands on equipment design. In the past, designers focused more on the layout of internal components. Today, every external protruding structure also needs to be considered. Although a handle is a relatively small hardware component, it can affect the spacing between equipment, operating access, and the overall layout.

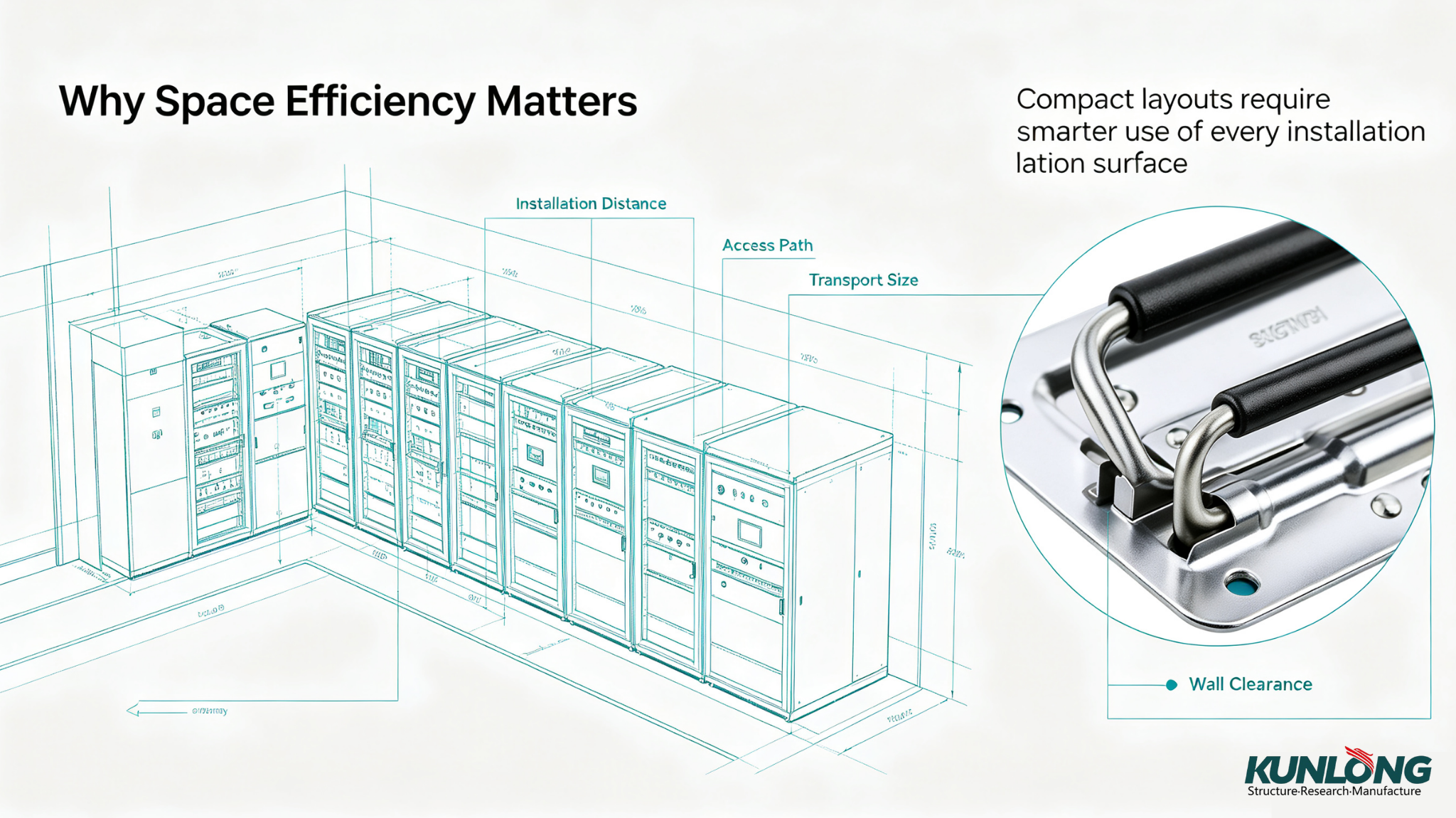

Why Is Space Utilization Becoming More Important in Industrial Equipment?

For industrial equipment installed on production lines, in equipment rooms, or within limited work areas, available space is often restricted. Equipment must not only meet its functional requirements but also maintain appropriate clearance from surrounding equipment, walls, and operating areas.

Therefore, space optimization does not simply mean making equipment smaller. It also means reducing unnecessary space occupation and making better use of limited installation and operating areas. In addition to the layout of internal electrical and mechanical components, external hardware such as handles, hinges, and locks can also affect the overall space requirements of the equipment.

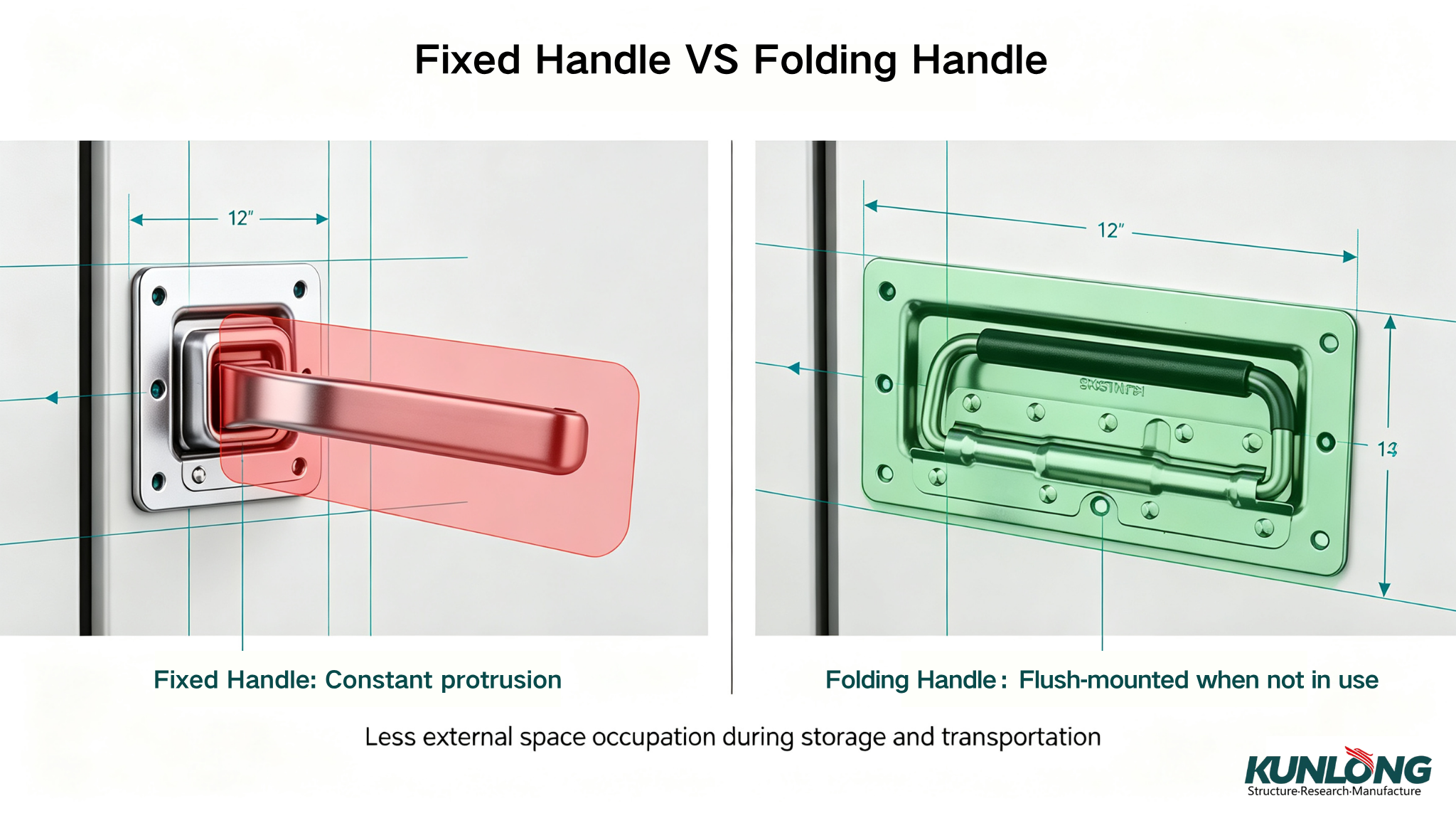

Fixed Handles vs. Folding Handles: What Is the Difference in Space Usage?

Fixed handles are simple and intuitive to operate, but they typically remain protruding from the equipment even when the door is closed. In applications where equipment is installed side by side, positioned close to a wall, or used in limited spaces, these protruding structures may take up additional installation and access space. They can also increase the overall dimensions of equipment during handling and transportation.

Folding handles, on the other hand, can be folded when not in use. They extend to provide a comfortable gripping position when the equipment needs to be operated and fold back closer to the equipment surface afterward, reducing unnecessary external protrusion. For industrial cabinets, control equipment, and compact industrial enclosures, this design provides greater flexibility in equipment layout while maintaining convenient operation.

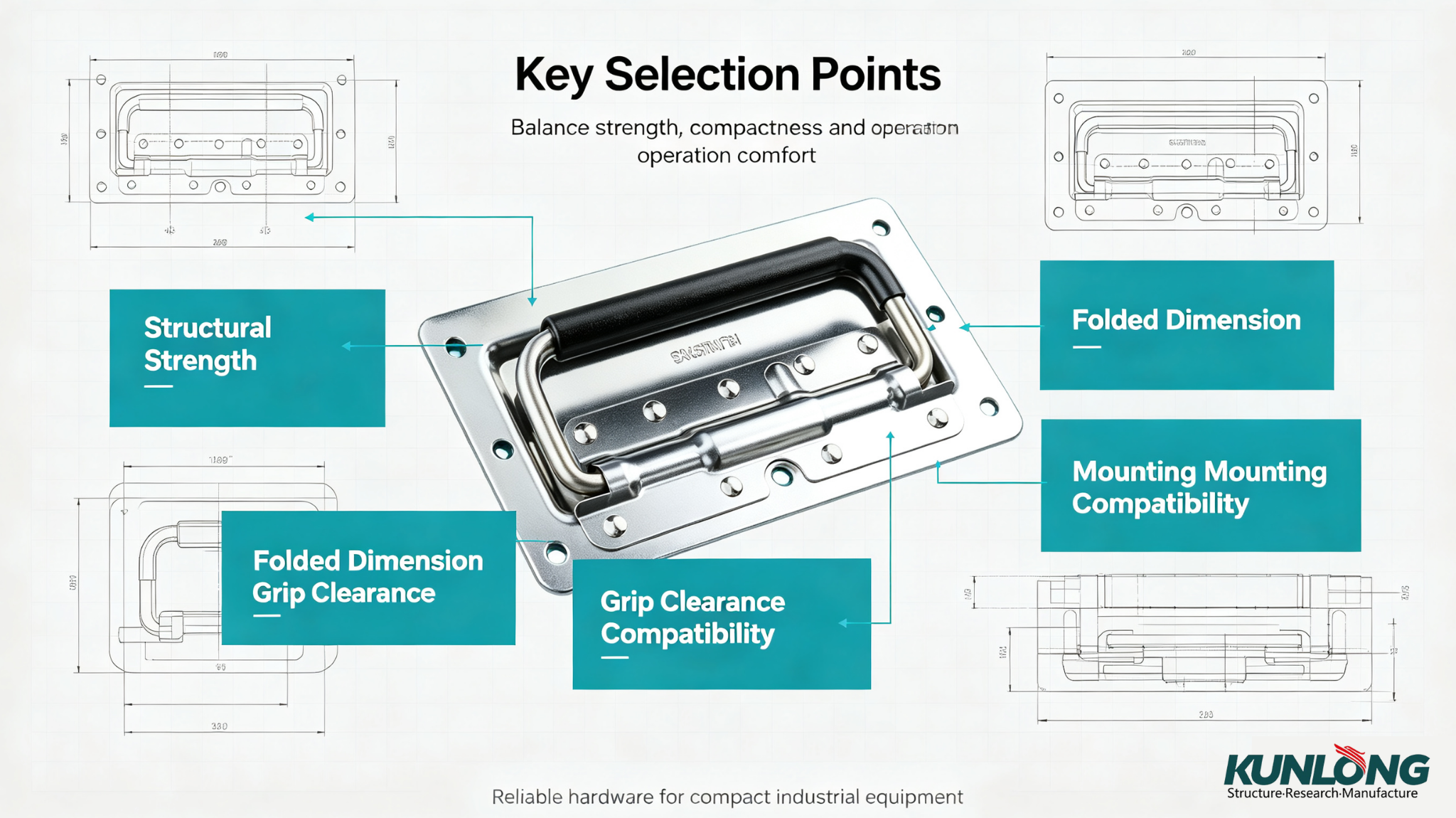

What Should You Consider When Choosing a Folding Handle?

1. Structural Strength: It should withstand the forces generated during daily opening, closing, and operation of the equipment.

2. Folded Dimensions: The handle should stay as close as practical to the equipment surface when folded to minimize external space usage.

3. Operating Experience: When extended, it should provide sufficient gripping space for convenient operation.

4. Installation Compatibility: The mounting method, dimensions, and structure should be compatible with the equipment door and overall design.

Ultimately, the right folding handle should balance space efficiency, ease of operation, and reliability.

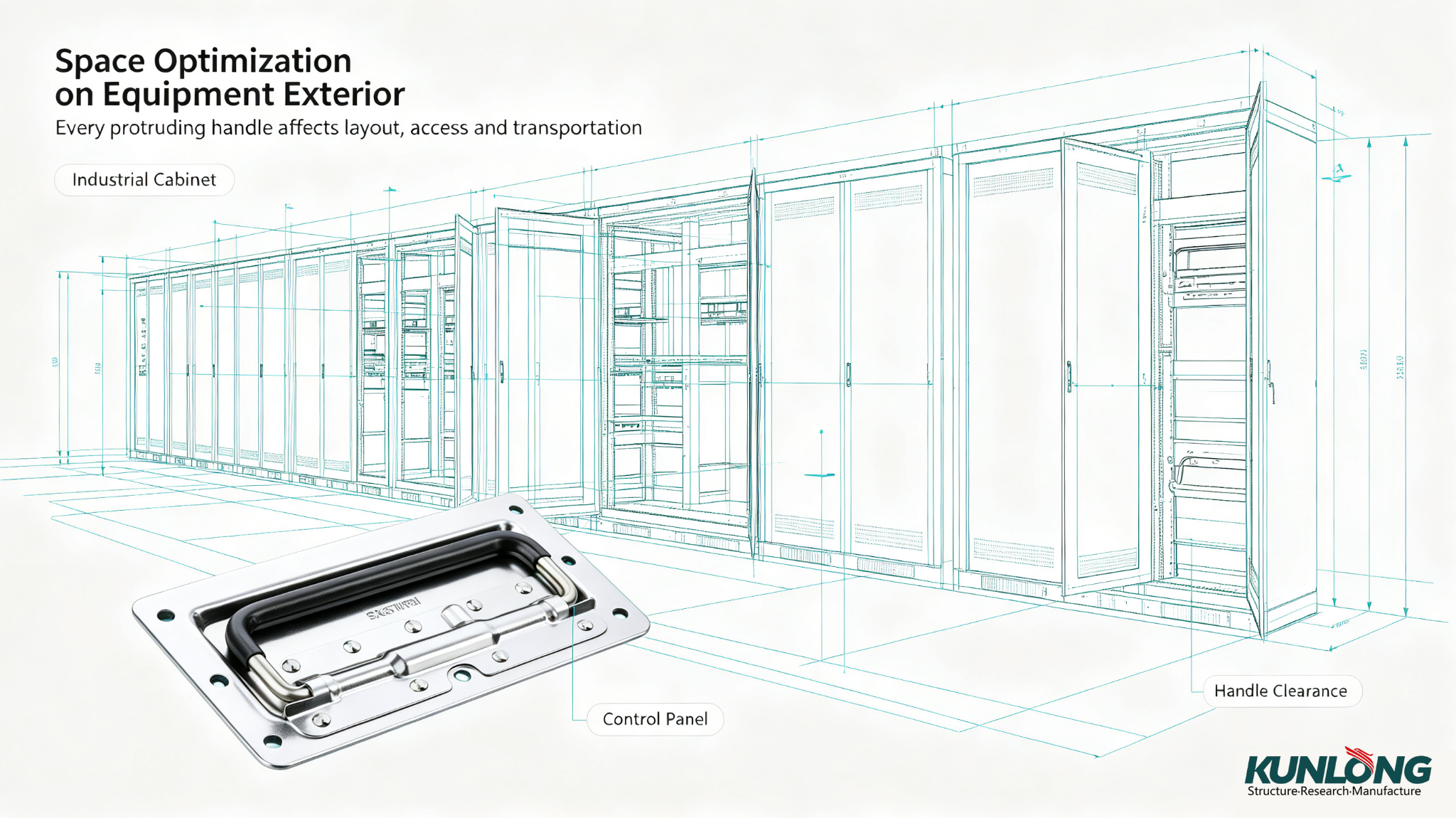

Which Industrial Equipment Can Benefit from Folding Handles?

1. Industrial Cabinets: Suitable for compact cabinets or equipment installed side by side.

2. Control Cabinets: Helps reduce external protrusion from the door and optimize installation space.

3. Automation Equipment: Suitable for compact equipment layouts where regular operation is required.

4. Inspection Equipment: Helps balance accessibility and equipment layout in limited spaces.

5. Industrial Enclosures: Suitable for enclosures where external dimensions and handling space are important considerations.

Space optimization in industrial equipment often comes down to the details. With a foldable structure, a folding handle can reduce external space requirements while maintaining convenient operation, providing a more flexible design option for compact industrial equipment.
