In the field of environmental simulation and reliability testing, equipment such as temperature and humidity test chambers, thermal shock chambers, and salt spray test chambers play a critical role in ensuring the quality of products used in automotive, electronics, semiconductor, aerospace, and medical industries. While sophisticated cooling, heating, and control systems create precise testing environments inside the chamber, it is often the overlooked "hidden heroes"—precision industrial hardware components—that maintain the chamber’s structural integrity and airtight isolation from the external atmosphere.
One of the most important requirements of a test chamber is maintaining a stable internal environment. Temperature and humidity levels often need to be controlled within extreme ranges, from -70°C to +150°C and up to 98% RH. Even a minor air leak around the chamber door can cause temperature and humidity fluctuations, increase system workload, and compromise test accuracy.

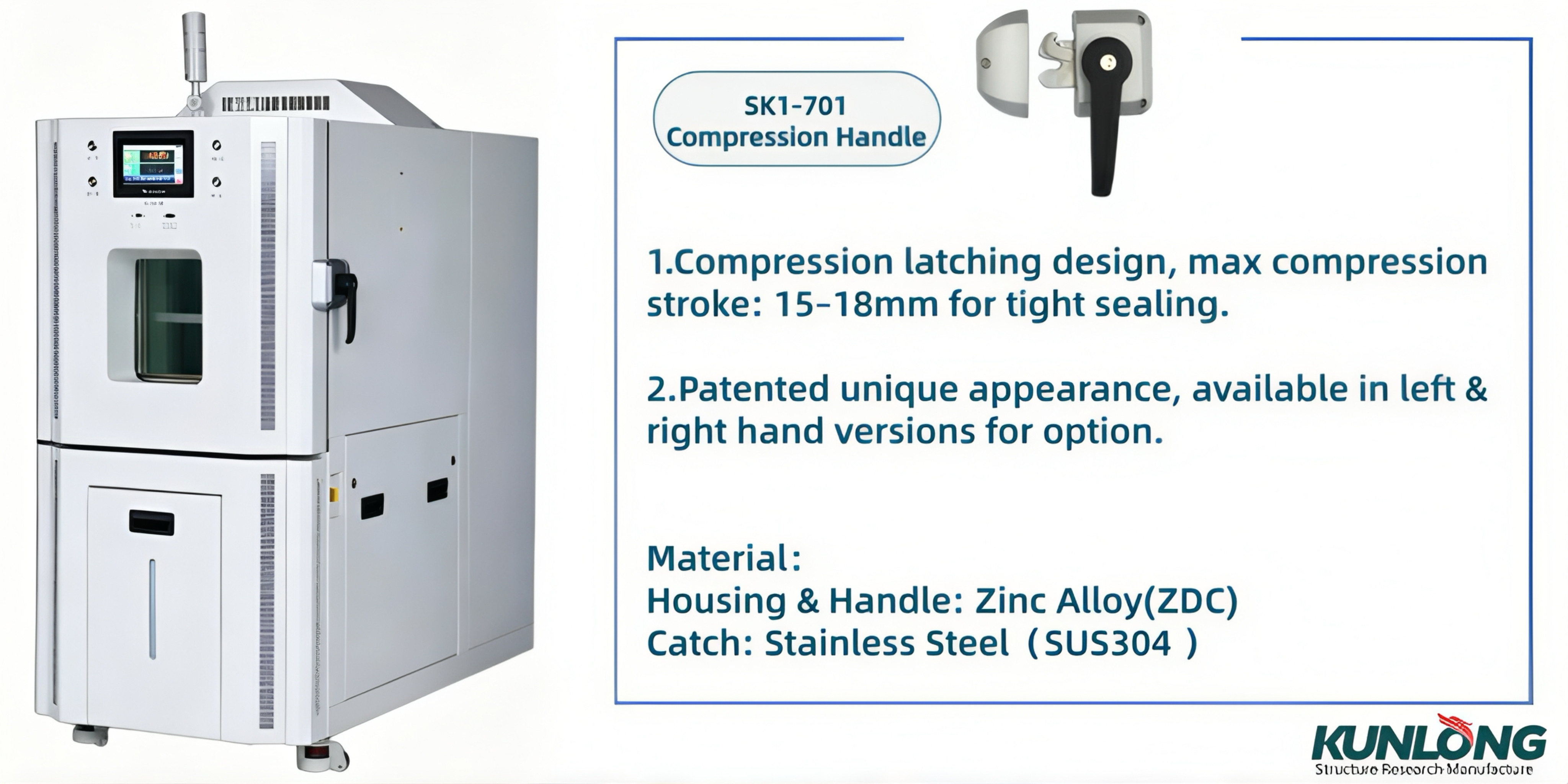

The ShangKun SK1-701 Compression Latch is designed with a compression sealing mechanism that provides an extra-large compression travel of 15–18 mm. This allows thick high-temperature silicone seals to be evenly compressed, creating a secure physical seal that effectively prevents heat and moisture leakage while maintaining environmental stability inside the chamber.

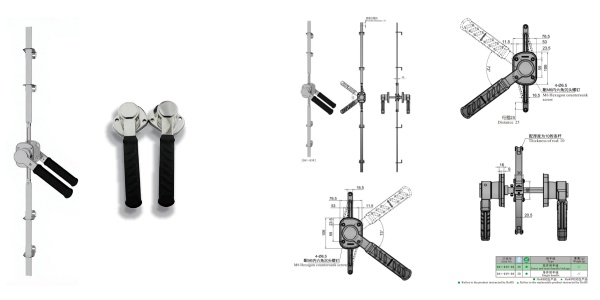

For walk-in environmental chambers and large industrial ovens, single-point locking systems are often insufficient to maintain consistent sealing performance across oversized doors. The ShangKun SK1-839 Stainless Steel Rod Control Lock utilizes a heavy-duty square shaft connecting the interior and exterior handles. By rotating the handle, multiple locking points are engaged simultaneously, ensuring uniform door compression, reducing operating effort, and preventing door deformation caused by long-term exposure to extreme temperature cycles.
During rapid temperature cycling and thermal shock testing, the air inside the chamber expands and contracts dramatically, often creating significant pressure differences between the interior and exterior. Rapid cooling, in particular, can generate a vacuum effect that makes the chamber door difficult to open.

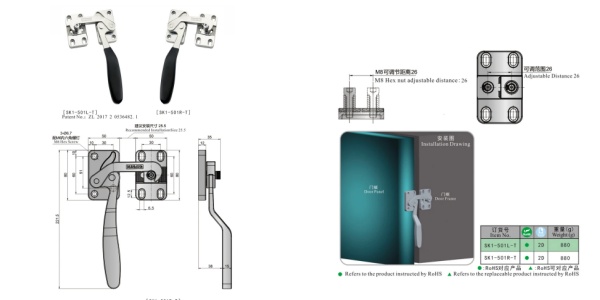

The ShangKun SK1-501-T features a proprietary patented design engineered for reliable operation. In addition to its compression latching capability, the compression travel can be adjusted to accommodate different door seal gaps. During the initial stage of handle operation, a small amount of force is sufficient to break the vacuum seal and equalize pressure between the inside and outside of the chamber, enabling smooth and effortless door opening. The handle is rubber-coated for enhanced comfort, while the SUS304 stainless steel body with a mirror-polished finish provides excellent corrosion resistance and easy cleaning.

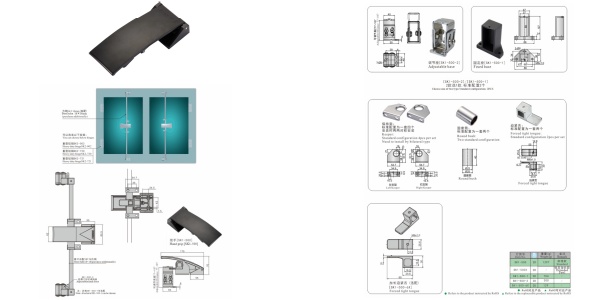

In high-risk testing applications such as new energy battery charging and discharging tests, thermal runaway events may generate sudden internal pressure buildup. The ShangKun SK1-500 Series Explosion-Proof Door Catch can function as a mechanical pressure-relief device. When internal pressure exceeds a predetermined threshold, the latch automatically releases to vent excess pressure and help prevent chamber rupture, while still providing sufficient holding force to avoid accidental opening during normal operation.
Environmental chamber doors typically contain insulation layers exceeding 100 mm in thickness and often incorporate heavy multi-layer tempered glass observation windows. Standard hinges may experience wear, sagging, misalignment, uneven seal compression, or even structural failure after prolonged use under such demanding conditions.

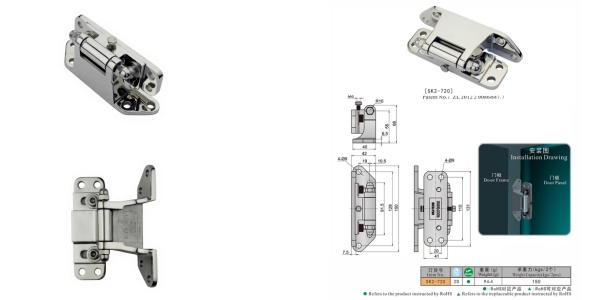

The ShangKun SK2-720 Heavy-Duty Precision Hinge is specifically developed for environmental testing equipment and manufactured from SUS304 stainless steel. Its optimized structural design enhances durability and long-term reliability. The hinge allows door position adjustment to accommodate different sealing thickness requirements, supports both left-hand and right-hand door configurations, and provides a maximum opening angle of 180 degrees for convenient operation and maintenance.
Although industrial hardware components may appear small compared to the overall testing system, they play a decisive role in the sealing performance, operational safety, and long-term reliability of environmental test chambers. ShangKun remains committed to providing professional latching, hinging, and door control solutions that help manufacturers build more accurate, safer, and more durable testing environments.
