With the rapid growth of the green energy industry, energy storage systems have become a critical infrastructure in modern renewable applications. In the overall design of energy storage cabinets, hardware structural components may seem minor, but they directly impact equipment safety, stability, and long-term maintenance costs.
From an engineering perspective, the protective design of outdoor energy storage cabinets typically revolves around four key principles: sealing, vibration resistance, environmental adaptability, and structural optimization. These four aspects largely determine the reliability of equipment operating in complex outdoor environments.
In energy storage systems, sealing is not just about water and dust resistance—it also affects internal temperature control, electrical safety, and system lifespan. Traditional locks may lead to uneven pressure distribution or localized loosening of the door panel over time, resulting in potential leakage or contamination.

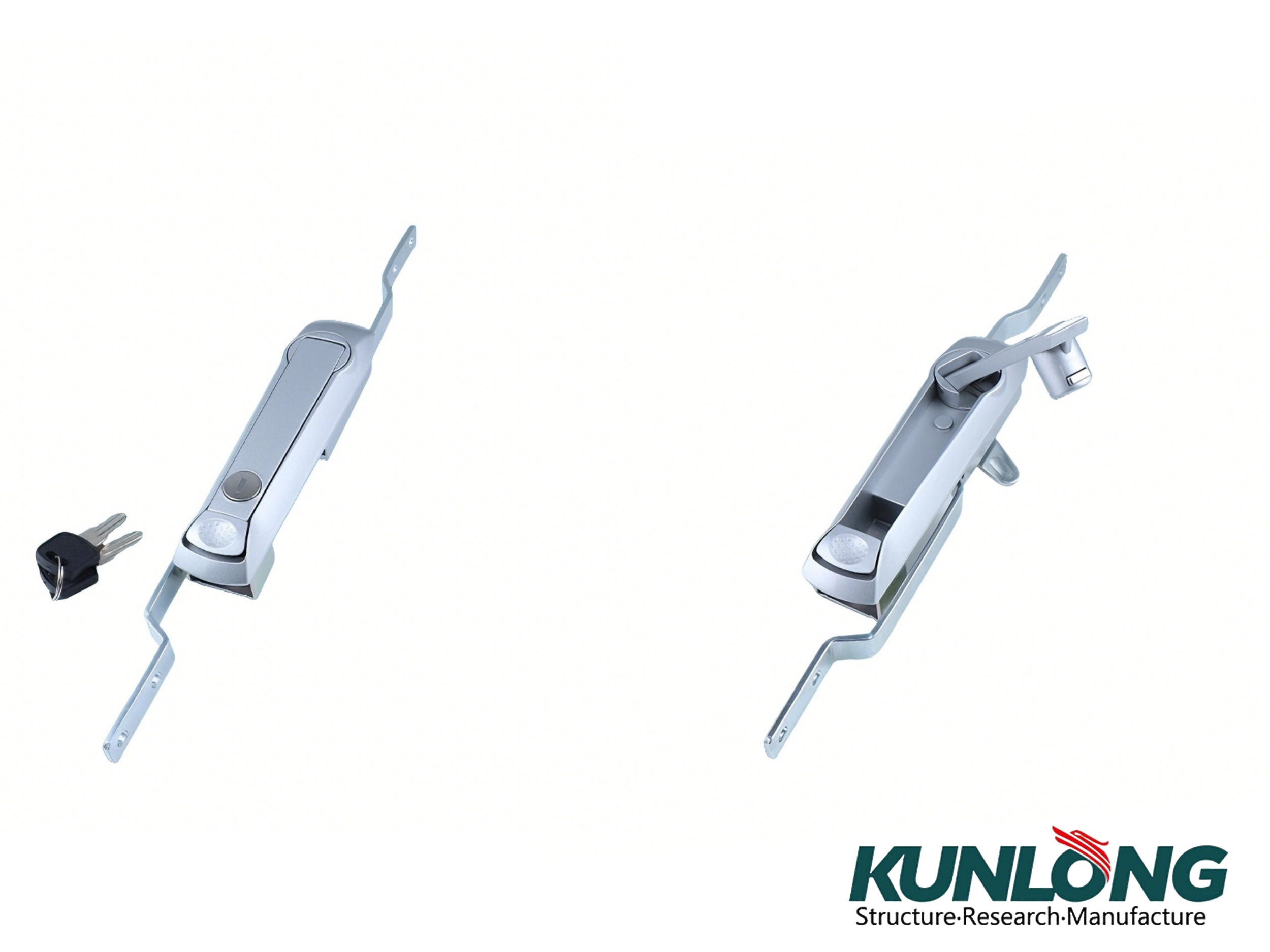

ShangKun Solution: SK1-929 Linkage Lock
1. Supports optional locking rods and accessories to form a three-point locking system
2. Multi-point synchronous locking improves overall door compression force
3. Made of aluminum alloy (ADC12), balancing strength and lightweight performance
This structure not only improves sealing performance but also enhances the overall rigidity of the cabinet. It is particularly suitable for outdoor energy storage cabinets and battery enclosures with high sealing requirements.
During transportation, installation, and operation, energy storage equipment is often exposed to continuous micro-vibrations. Poor structural design can result in door loosening, noise, or even long-term fatigue damage.

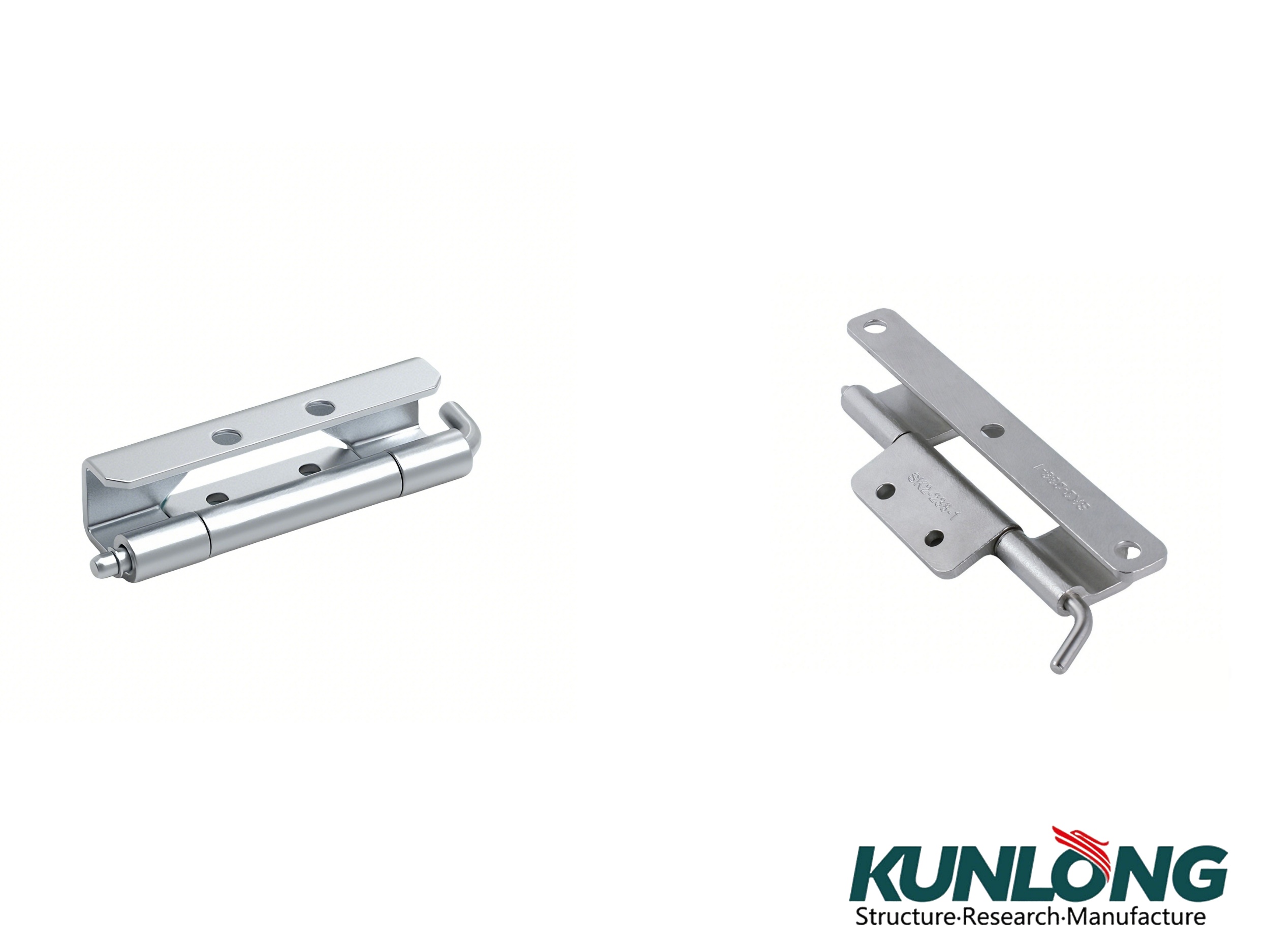

ShangKun Recommended Solution: SK2-238-4 Concealed Hinge
1. Concealed design installed from inside the panel for a clean appearance
2. Quick-release function for easy maintenance
3. Made of stainless steel (SUS304) with strong corrosion resistance
Concealed hinges reduce safety risks caused by exposed components and provide more stable structural connections under vibration, minimizing loosening over time.
Energy storage cabinets are typically deployed outdoors and must withstand complex environments such as:
1. Coastal areas: High salt spray leading to corrosion and component failure
2. High-temperature exposure: UV radiation accelerating material aging
3. Extreme cold: Low temperatures causing brittleness and sealing degradation

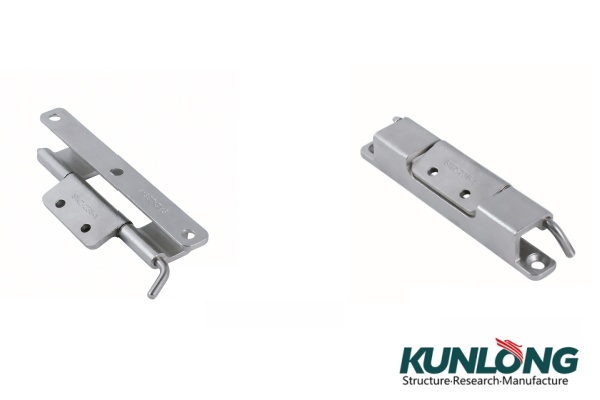

ShangKun Recommended Solution: SK2-238-1 Concealed Hinge
High Weather Resistance Material: For extreme environments, we offer the SK2-238-1 concealed hinge made of SUS316 stainless steel, whose corrosion resistance far exceeds that of ordinary stainless steel, specially designed for coastal and high-salt-spray areas.

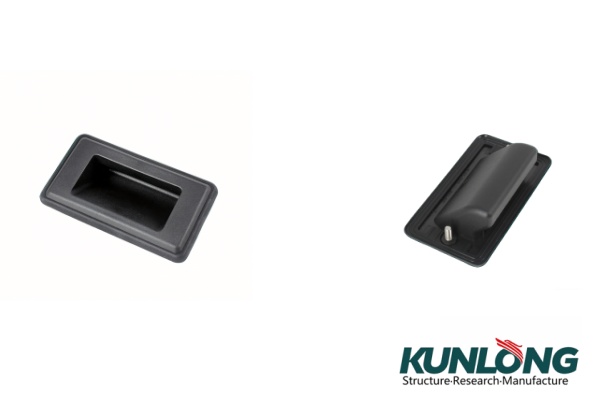

Surface Treatment Process: All exposed metal parts undergo rigorous surface treatment (such as vibratory grinding and high-salt-spray spraying), combined with the SK4-007B recessed handle made of nylon (PA), ensuring no deformation or aging within a wide temperature range of -40℃ to 85℃.
In real-world applications, many energy storage cabinets face challenges such as complex access panel disassembly. Frequent opening may damage the original sealing structure. Therefore, structural design must balance both strength and maintainability.
ShangKun Structural Optimization Solutions:
1. Quick access design:

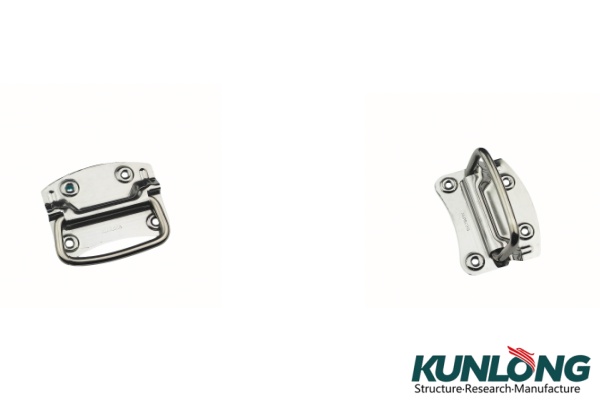

SK4-021-2S folding handle (SUS304), with a 110° foldable structure for easy grip and space-saving, combined with quick-release locks for efficient opening without destructive disassembly
2. Level adjustment:

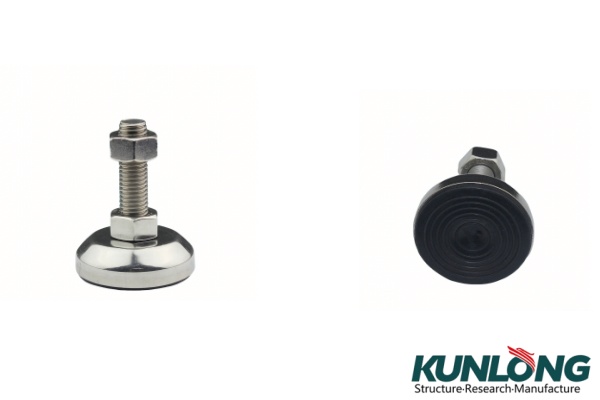

DS-50 adjustable leveling feet, made of stainless steel with a large contact surface and rubber pads, providing anti-slip and vibration reduction while adapting to uneven outdoor surfaces
ShangKun Industrial Hardware is committed to delivering reliable structural connection and protection solutions for the green energy and energy storage industries—helping equipment operate safely and stably in even the most demanding environments.
