Shang-kun SK2-723 stainless steel adjustable lift hinge has been officially released

Views: 8     Author: Site Editor     Publish Time: 2016-08-26      Origin: Site

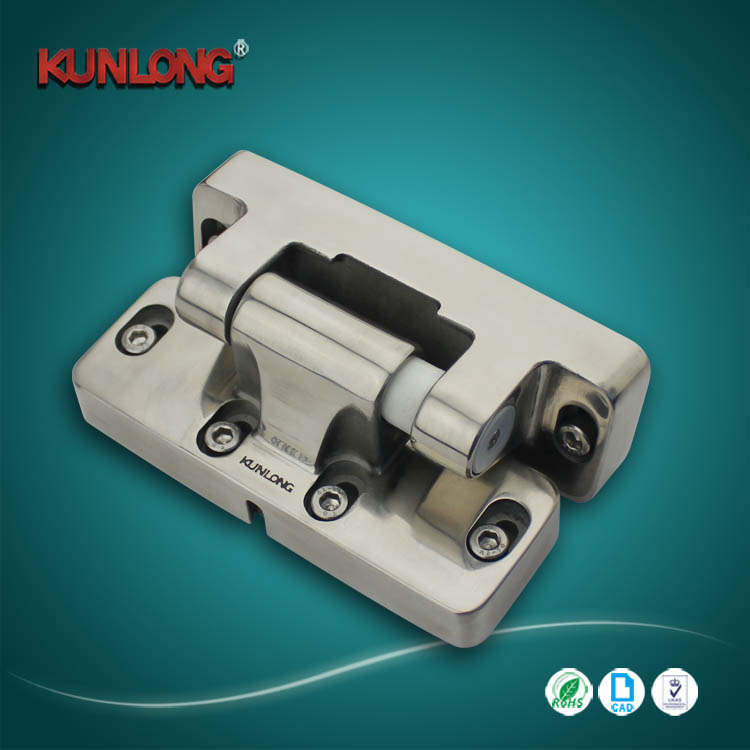

SK2-723


Product Name:
stainless steel  adjustable lift hinge

Item No.:SK2-723

Feature:
        1.Low profile with 180 degree opening angle
        2.Door can be raised up when opening(The maximum height is 10mm)
        3.Equipped with adjustment screw, may be appropriate to adjust the position of the base, the maximum distance is adjustable 10mm

Material:Stainless steel(SUS304)

Finish:Bright Polishing

Application:Building Freezer,Walk-in Chamber,Cold Storage Door,Cold Storage Equipment Door

Remark:Please pay attention on the right type and left type

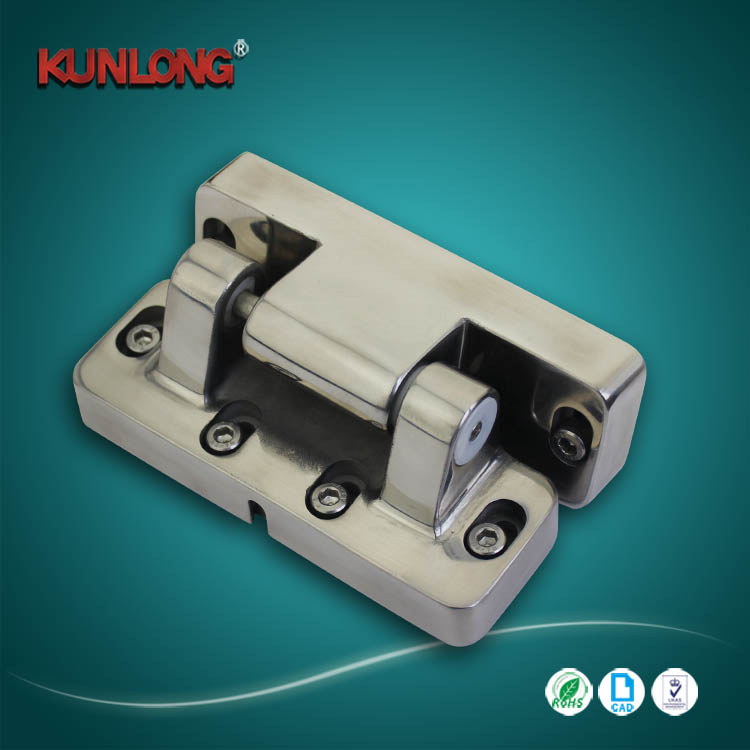

SK2-723(2)

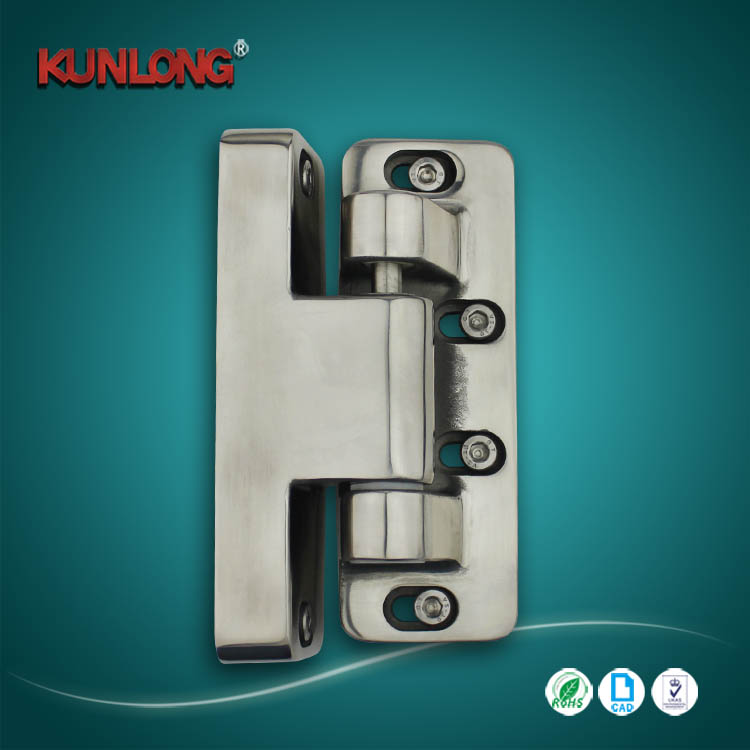

SK2-723(3)

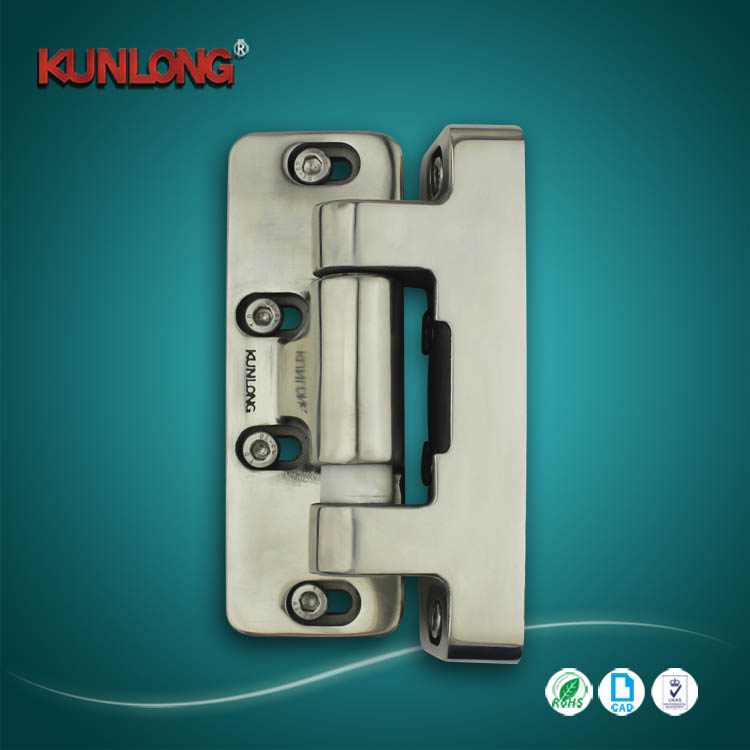

SK2-723(4)

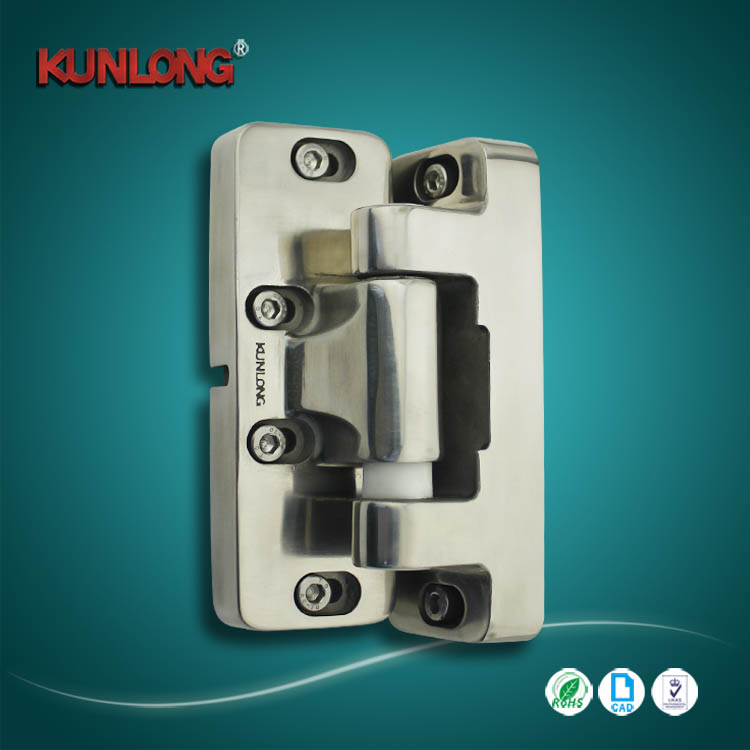

SK2-723(5)

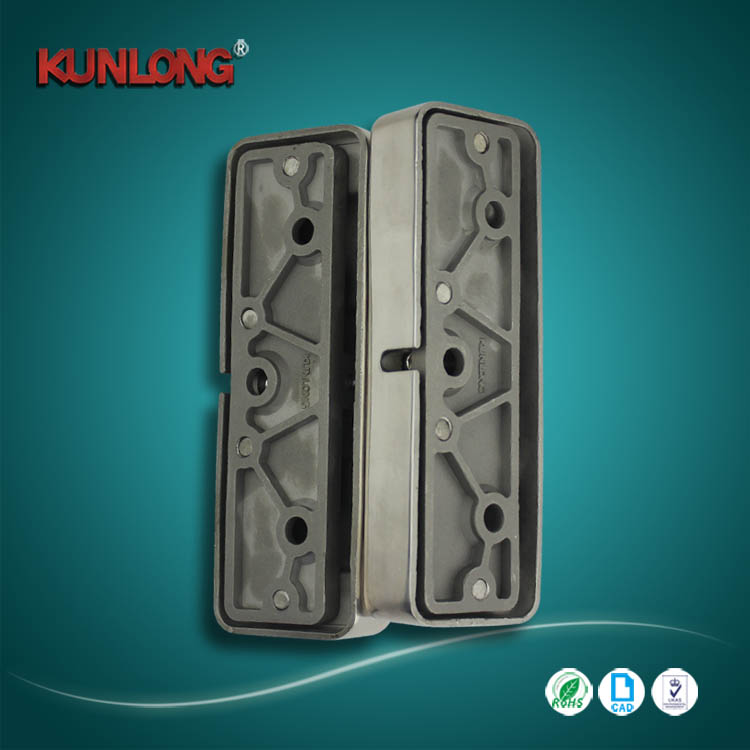

SK2-723(6)

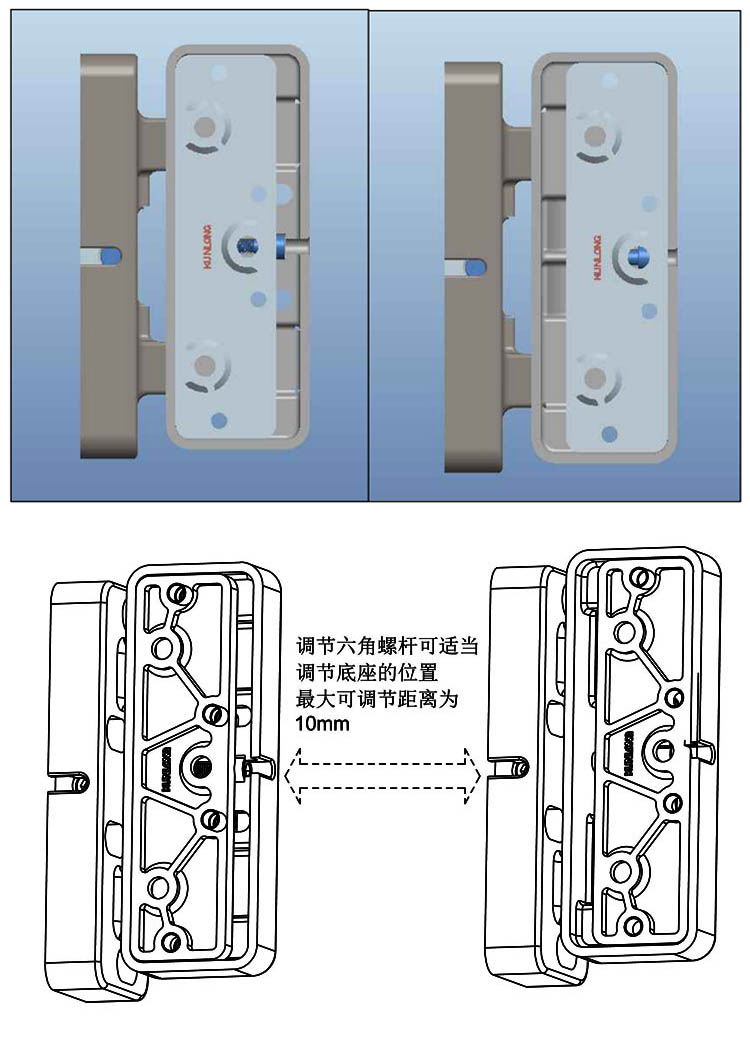

SK2-723调节展示

SK2-723尺寸
