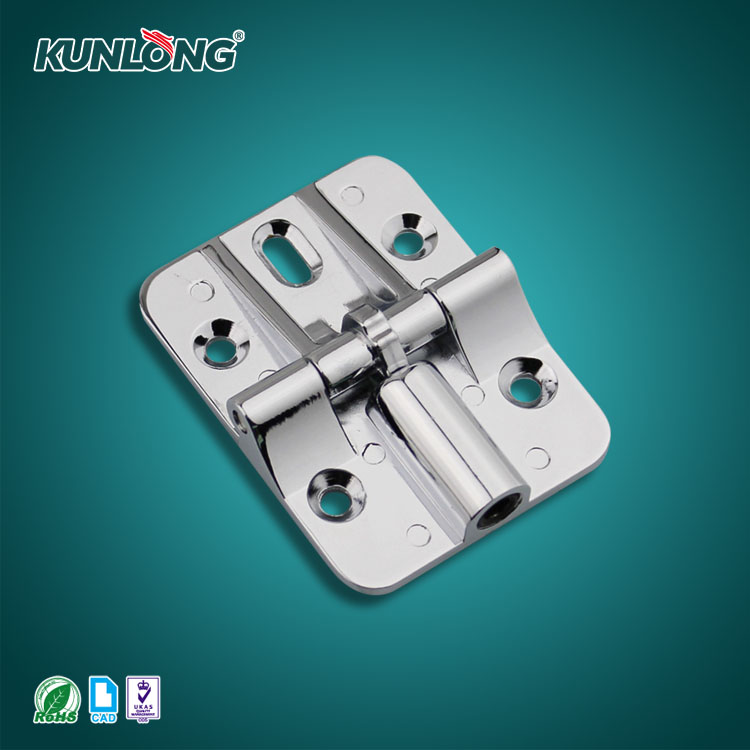

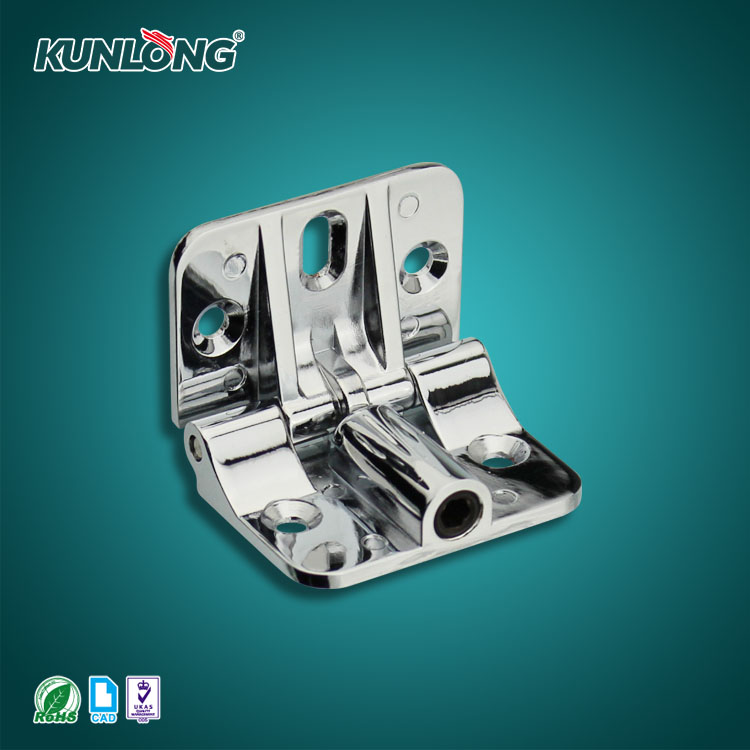

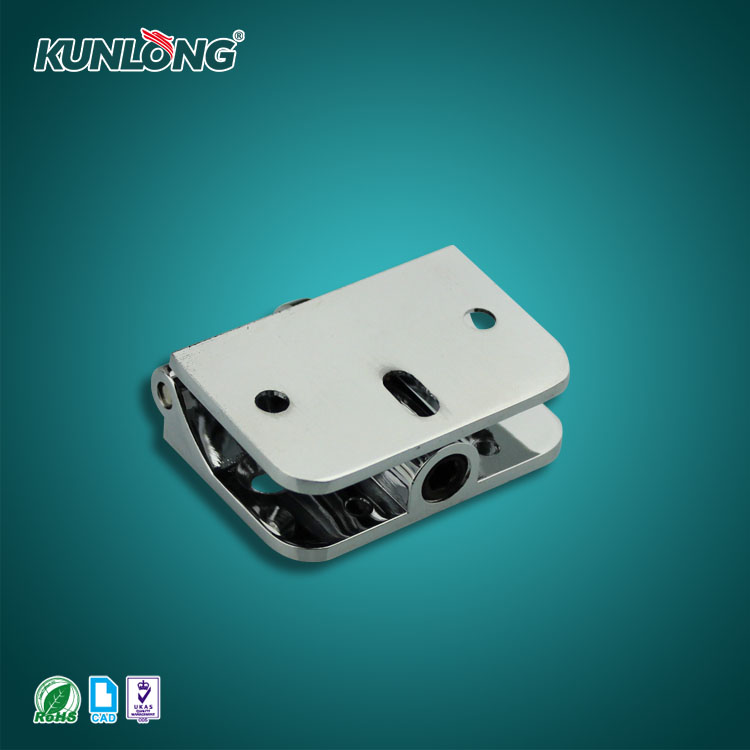

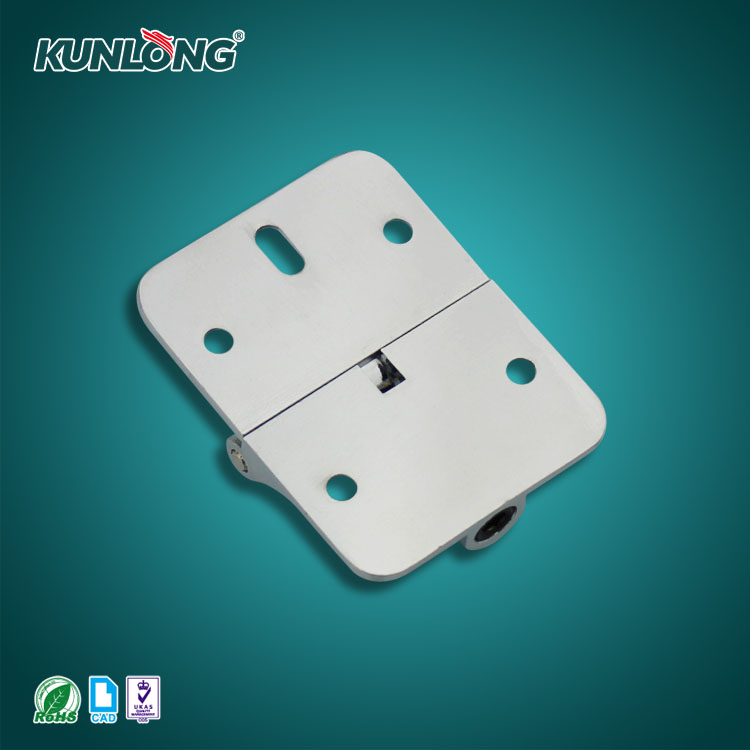

SK2-007-1 KUNLONG Adjustable 90 Degree And 180 Degree Position Control Hinge

Share to:

Material: Zinc Alloy (ZDC)
Finish: Bright Chrome Plated

Quantity:
  • SK2-007-1
  • KUNLONG

SK2-007-1 KUNLONG Adjustable 90 Degree And 180 Degree Position Control Hinge


Material: Zinc Alloy (ZDC)

Finish: Bright Chrome Plated



Features:

1.With damping performance, can limit in 90 and 180 degree

2.Reasonable structure design, can limit to specified angle

3.Stainless steel and nickle plated pins can be chosen

Application: Chassis and cabinet; Electric cabinet; Oven; Electric box.

Remark: Suitable for left and right side opening


SK2-007-1

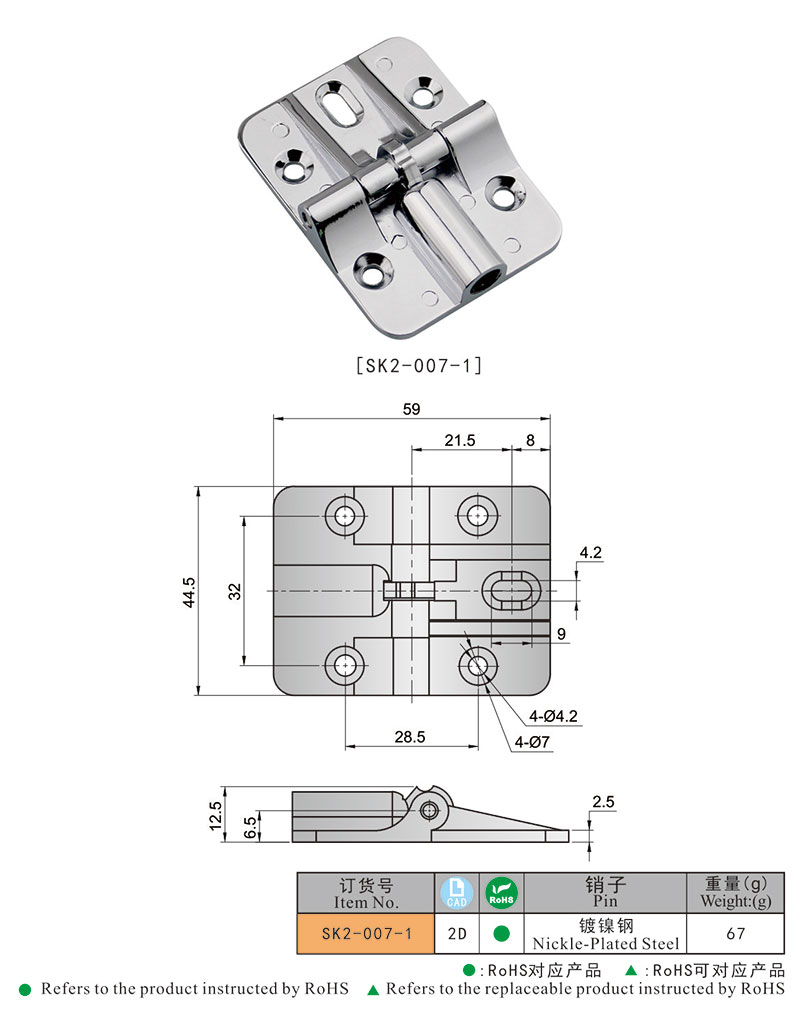

SK2-007-1尺寸
