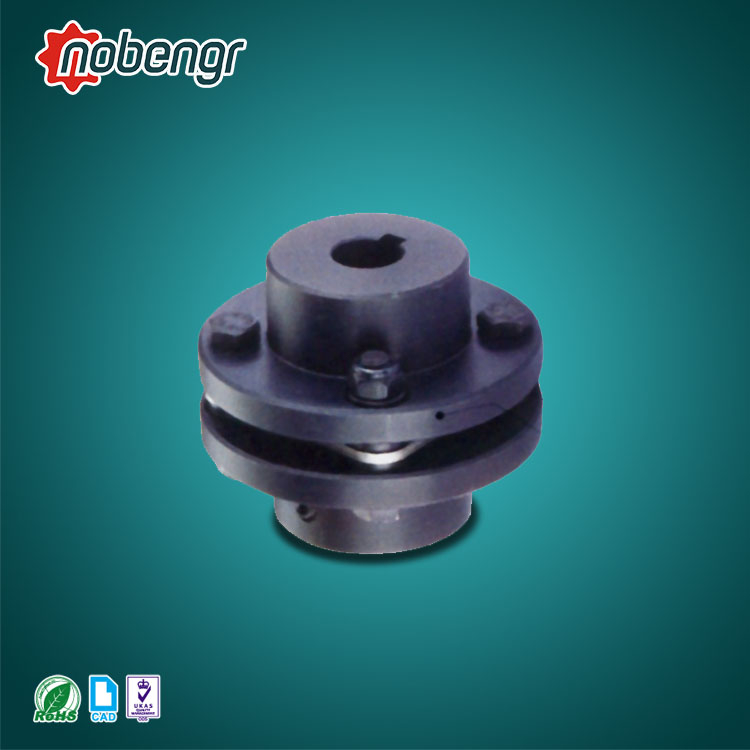

SG7-7-K nobengr Steel Single Disk Type Flexible Coupling

Share to:

Material: Alloy Steel
Finish: Black Oxide

Quantity:
  • SG7-7-K
  • nobengr

SG7-7-K nobengr Steel Single Disk Type Flexible Coupling


Material: Alloy Steel

Finish: Black Oxide



Features:

1. Using keyway connect, plate springs coupling

2. Zero backlash, disassembly easy

3. Excellent response and high torque capacity

4. Identical clockwise and anticlockwise rotational characteristics

5. Stainless steel plate springs absorb parallel, angular misalignment and shaft end-play

Application: Used for transmission power in kinds of mechanical equipment such as blower fan, pump, chemical industry, petroleum, metallurgy

Remark:

1. The moment of inertia and the quality is calculated according to the maximum shaft hole

2. Bore dimensions can be customized


SG7-7-K

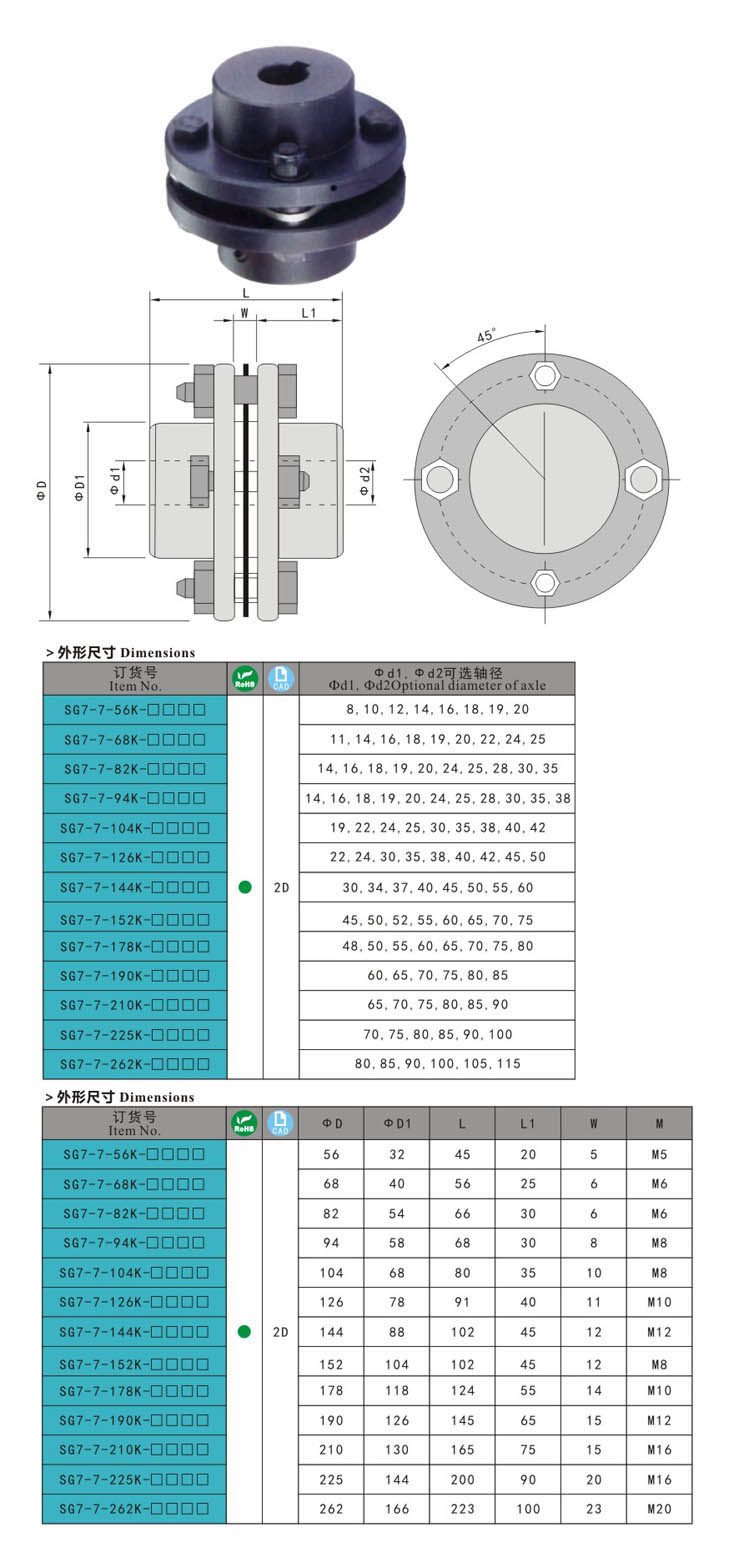

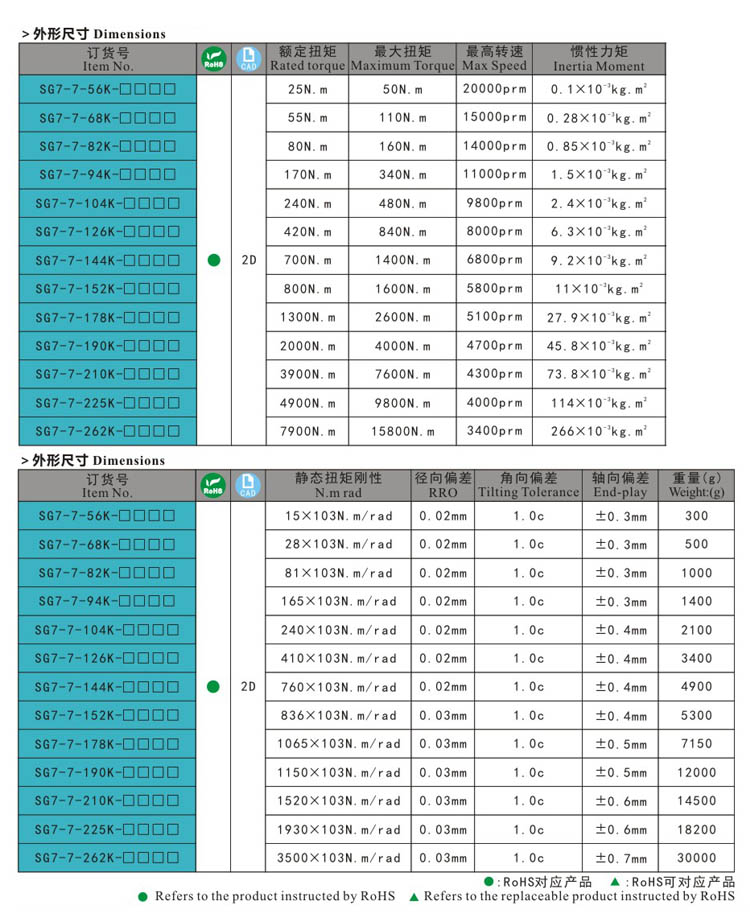

SG7-7尺寸(1)-door hinge,draw latch,door latch,handle lock,compression latchSG7-7尺寸(2)-door hinge,draw latch,door latch,handle lock,compression latch
