SK2-003-5
KUNLONG
20220428002

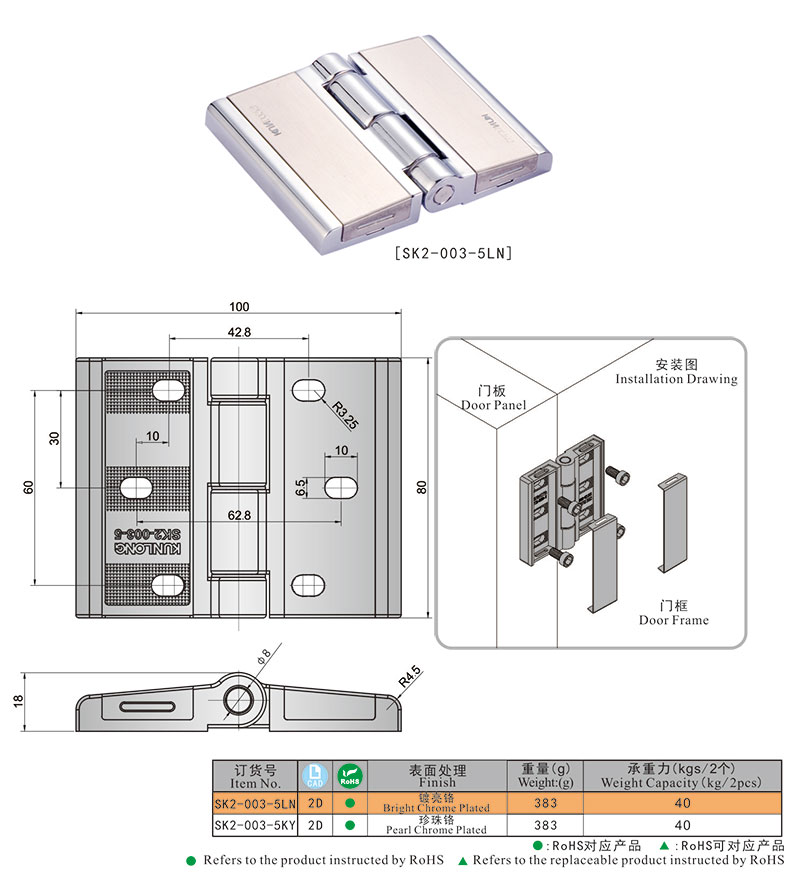

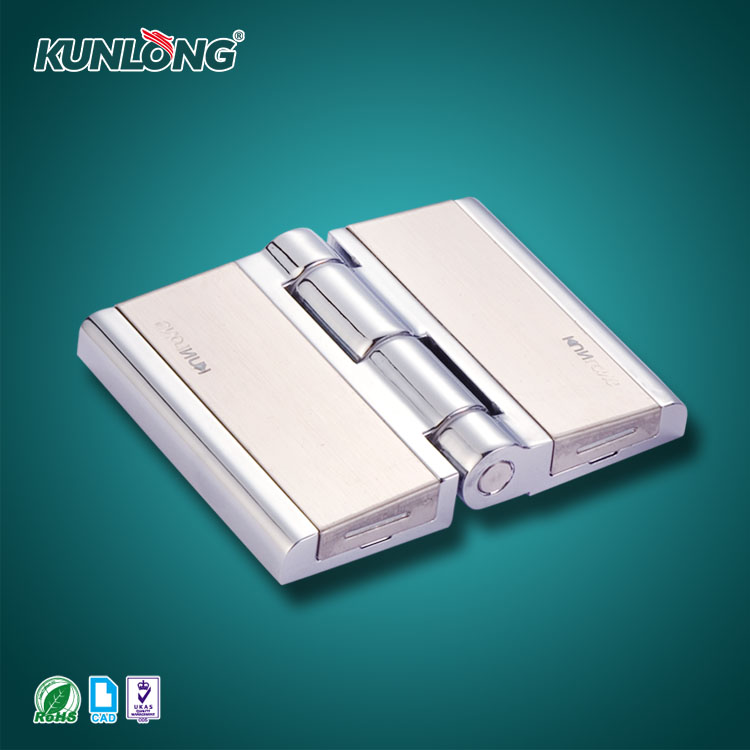

SK2-003-5 KUNLONG Electrical Machine Panel Hinge Made in China
Material: Zinc Alloy (ZDC)
Finish: Bright Chrome Plated
Features:
1.Design with six oblong holes, easy to adjust and more tightly
2.Wiredrawing Stainless Steel cover plate and Stainless Steel SUS304 shaft
3.Low profile with 135 degree opening angle, and no installation marks after assembled
Application: Chassis and cabinet; Oven; Automatic equipment.
Remark: Please fix the screw tightly after adjust position when installing
