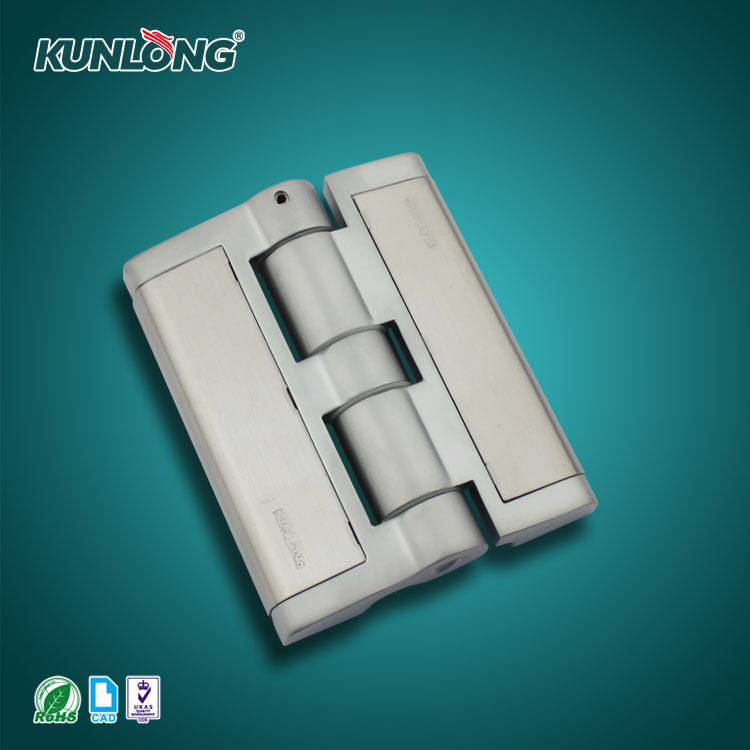

SK2-003-6 KUNLONG Exposed Type Hinge for Oven

Share to:

Material: Zinc Alloy (ZDC)
Finish: Bright Chrome Plated

Quantity:
  • SK2-003-6
  • KUNLONG

SK2-003-6 KUNLONG Exposed Type Hinge for Oven


Material: Zinc Alloy (ZDC)

Finish: Bright Chrome Plated



Features:

1. Design with six oblong holes, easy to adjust and more tightly

2.Wiredrawing Stainless Steel cover plate and Stainless Steel SUS304 shaft

3.Low profile with 135 degree opening angle, and no installation marks after assembled

Application: Chassis and cabinet;Mini Oven; Automatic equipment.

Remark: Please fix the screw tightly after adjust position when installing


SK2-003-6

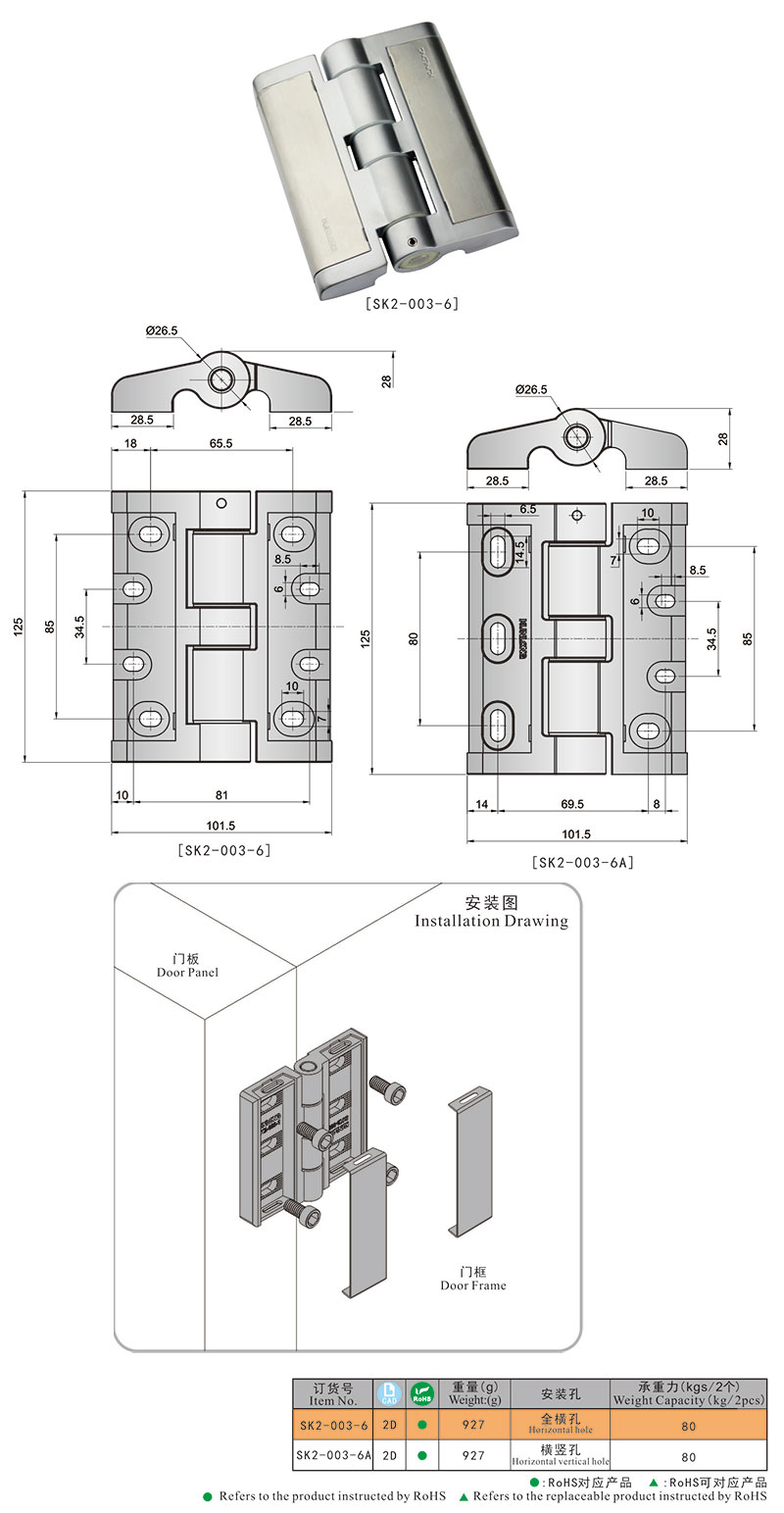

SK2-003-6尺寸
