Application Analysis of Pin Hinges in Industrial Equipment

In various industrial equipment, enclosures, and cabinet structures, the door opening mechanism may appear simple, yet it has a direct impact on usability, maintenance efficiency, and structural reliability. Pin hinges are designed around the concept of stable connection combined with easy disassembly, offering unique advantages in practical applications.

1. Ensuring Stable Door Operation and Reliable Support

The most fundamental function of a pin hinge is to provide a stable pivot point for door movement. By connecting both sides of the hinge with a removable pin, the door rotates smoothly around the pin axis during opening and closing.

With proper selection and installation, the hinge pin effectively supports the door weight, ensuring smooth operation and stable closing while reducing long-term issues such as wobbling, misalignment, or door sagging. This level of stability is essential for normal operation and structural safety.

2. Enabling Quick Door Removal and Reinstallation

Compared with traditional fixed-pin hinges, a key advantage of pin hinges is their removability. When internal maintenance or door replacement is required, the door can be removed as a whole simply by pulling out the hinge pin, without the need to remove multiple fasteners.

This significantly reduces disassembly steps and maintenance time, making pin hinges especially suitable for equipment that requires frequent servicing or periodic door removal. For operators, the process is more intuitive and efficient.

3. Improving Maintenance and Cleaning Efficiency

In many applications, maintenance involves not only repairs but also regular cleaning, inspection, and adjustment. Pin hinges allow doors to be quickly removed when necessary, providing greater access to internal components.

In medical equipment, testing instruments, and other applications with strict cleanliness requirements, this design helps minimize blind spots, making maintenance and cleaning more efficient and standardized, thereby enhancing overall safety and reliability.

4. Optimizing Door Removal in Limited Spaces

In compact equipment or enclosures with restricted space, traditional hinges often require ample clearance for door removal. Pin hinges, however, allow the door to be detached with a simple linear motion along the pin direction.

By carefully designing the pin insertion orientation, it is possible to prevent accidental pin removal during normal operation while still enabling quick disassembly during maintenance. This advantage is particularly valuable in space-constrained equipment.

5. Balancing Structural Strength and Flexibility

Pin hinges do not achieve convenience at the expense of structural strength. Through proper selection of pin diameter, material, and structural design, they can reliably support door weight while maintaining flexibility in installation and removal.

This balance between strength and usability makes pin hinges a practical and widely adopted solution for various industrial equipment door applications.

Typical Application Scenarios：

Pin hinges are commonly used in equipment that requires removable doors and high maintenance convenience, such as:

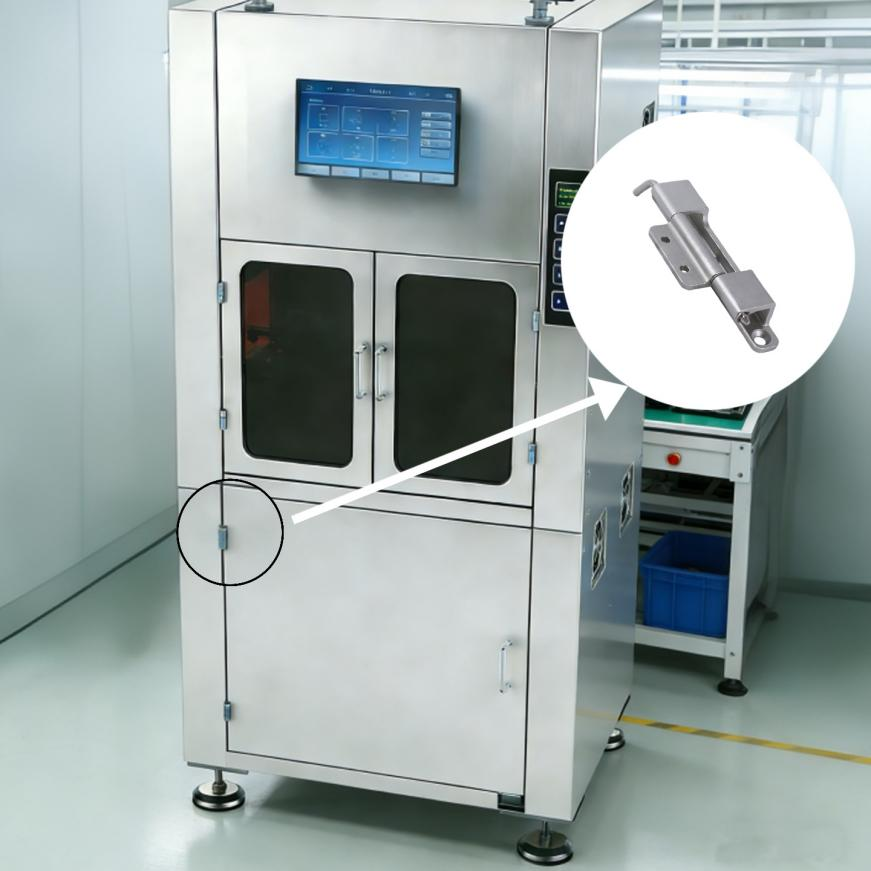

1.Industrial control cabinets and electrical enclosures – easy access for installation and maintenance

2.Medical and testing equipment enclosures – improved cleaning and servicing efficiency

3.Refrigeration equipment and cold storage doors – suitable for heavy doors and frequent operation
