High-Precision Couplings Secure Semiconductor Manufacturing

In semiconductor chip manufacturing, even the slightest deviation can affect chip performance or render an entire wafer unusable. From wafer cutting and photolithography to etching and packaging, every motion of the equipment must be precise and error-free. To meet these demanding requirements, the power transmission system inside the equipment must remain both stable and efficient, ensuring every bit of power is delivered without loss and preventing minor deviations from becoming major issues.

The Key Role of Couplings in Semiconductor Manufacturing

1.Accurate Power Transmission

Ensure motor power is transmitted efficiently and steadily to critical equipment such as lithography machines, wafer stages, and robotic arms, avoiding power loss and operational errors.

2.Reducing Vibration Interference

In high-speed equipment like wafer dicing machines and etching systems, couplings effectively minimize vibration, ensuring micron-level positioning accuracy.

3.Accommodating Minor Misalignments

Flexibly compensate for axial, radial, and angular deviations in wafer stages, robotic arms, and other components, keeping all parts working in perfect sync.

4.Extending Equipment Lifespan

Absorb shocks and reduce wear on key components, ensuring long-term stable operation of equipment.

ShangKun SG7 Series Couplings: Efficient Solutions for High-Precision Semiconductor Manufacturing

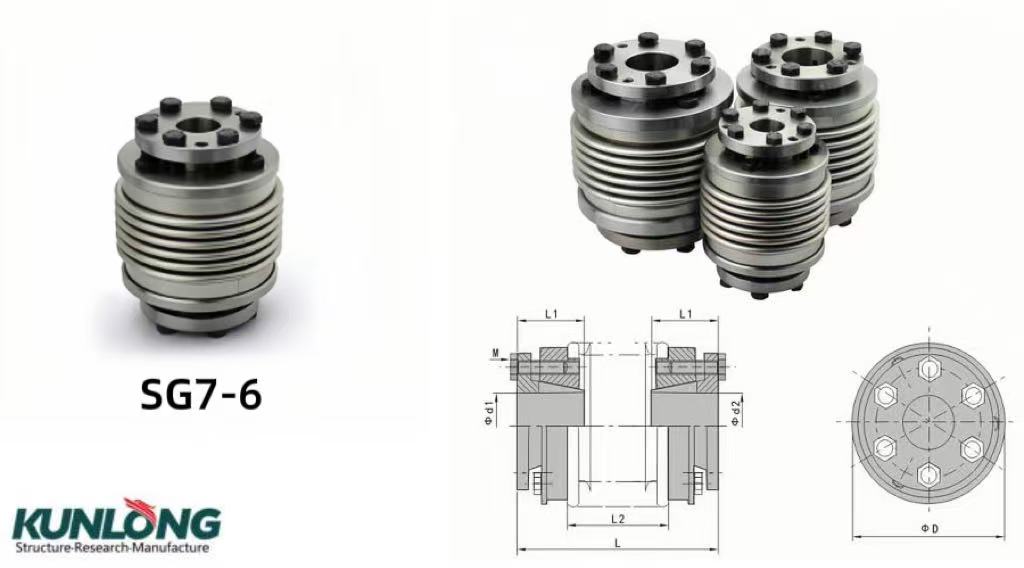

SG7-6 Series

1.Expansion-sleeve connection with a bellows structure provides reliable fixation and high torque transmission, ideal for precision-sensitive, high-speed equipment.

2.Zero-backlash design ensures accurate power delivery, preventing minor positioning errors from affecting production.

3.Flexible bellows structure compensates for axial, radial, and angular deviations, maintaining overall system stability.

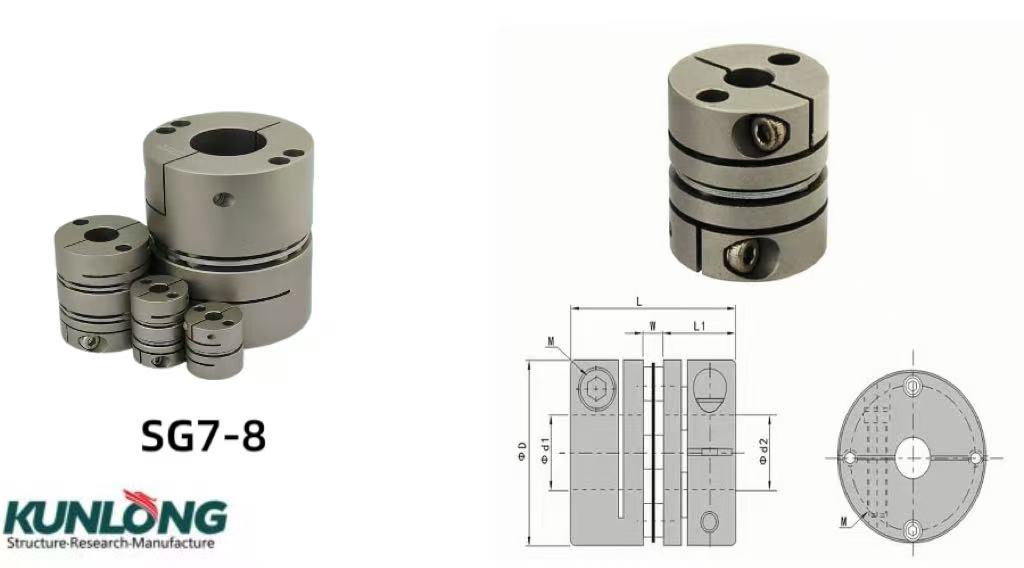

SG7-8 Series

1.High rigidity and high sensitivity ensure stable power transmission during high-speed operations.

2.Zero-backlash design minimizes deviations, making equipment motion more precise.

3.Clamp-screw fastening enables easy installation and maintenance, ensuring long-term operational reliability.

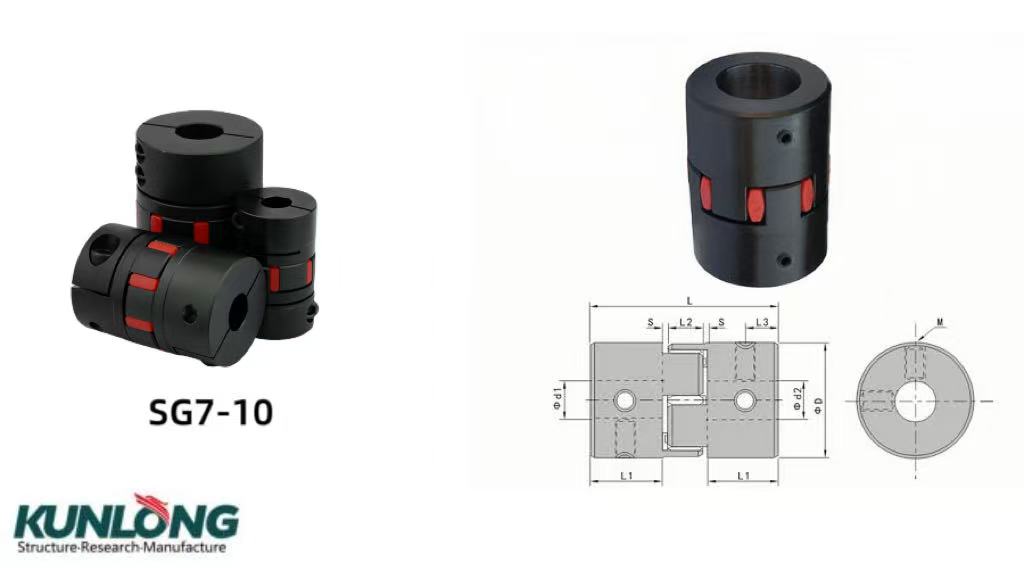

SG7-10 Series

1.Elastic intermediate coupling structure balances power transmission with vibration damping, meeting the needs of high-speed equipment.

2.Two optional elastomer hardness levels provide flexibility for different process requirements.

3.Absorbs vibrations and compensates for minor misalignments, reducing interference and improving equipment stability and product yield.

4.Oil resistance and electrical insulation ensure safety and cleanliness in semiconductor production environments.

5.Identical clockwise and counterclockwise rotation characteristics guarantee stability in bidirectional operation.

Choose ShangKun couplings to ensure every bit of power is transmitted with precision, enabling semiconductor equipment to operate more stably and reliably, even under high-speed conditions.
