In industrial equipment design, a hinge may be small, but it plays a crucial role in ensuring safety and smooth operation.
Different types of equipment, environmental conditions, and load requirements all determine the right hinge choice.
Selecting the right hinge not only enhances structural stability but also extends the overall service life of your equipment.
1.Choose the Hinge Material Based on the Environment
Environment | Hinge material | Features |
Indoor environment | Cold-rolled steel, Zinc alloy | low cost, moderate durability Suitable for office equipment and general server racks |
humid environment | Stainless Steel（SUS304/SUS316） | rust-proof and corrosion-resistant Suitable for commercial kitchen equipment, laboratories, and cold chain equipment. |
High temperature environment | Copper、Heat-resistant steel | high temperature resistant and not easily deformed Suitable for industrial ovens and heating equipment. |
High-cleanliness or medical environment | Medical-Grade Stainless Steel | Easy to clean and corrosion-resistant Suitablel for surgical rooms and laboratory equipment. |
2.Consider Load Capacity and Usage Frequency

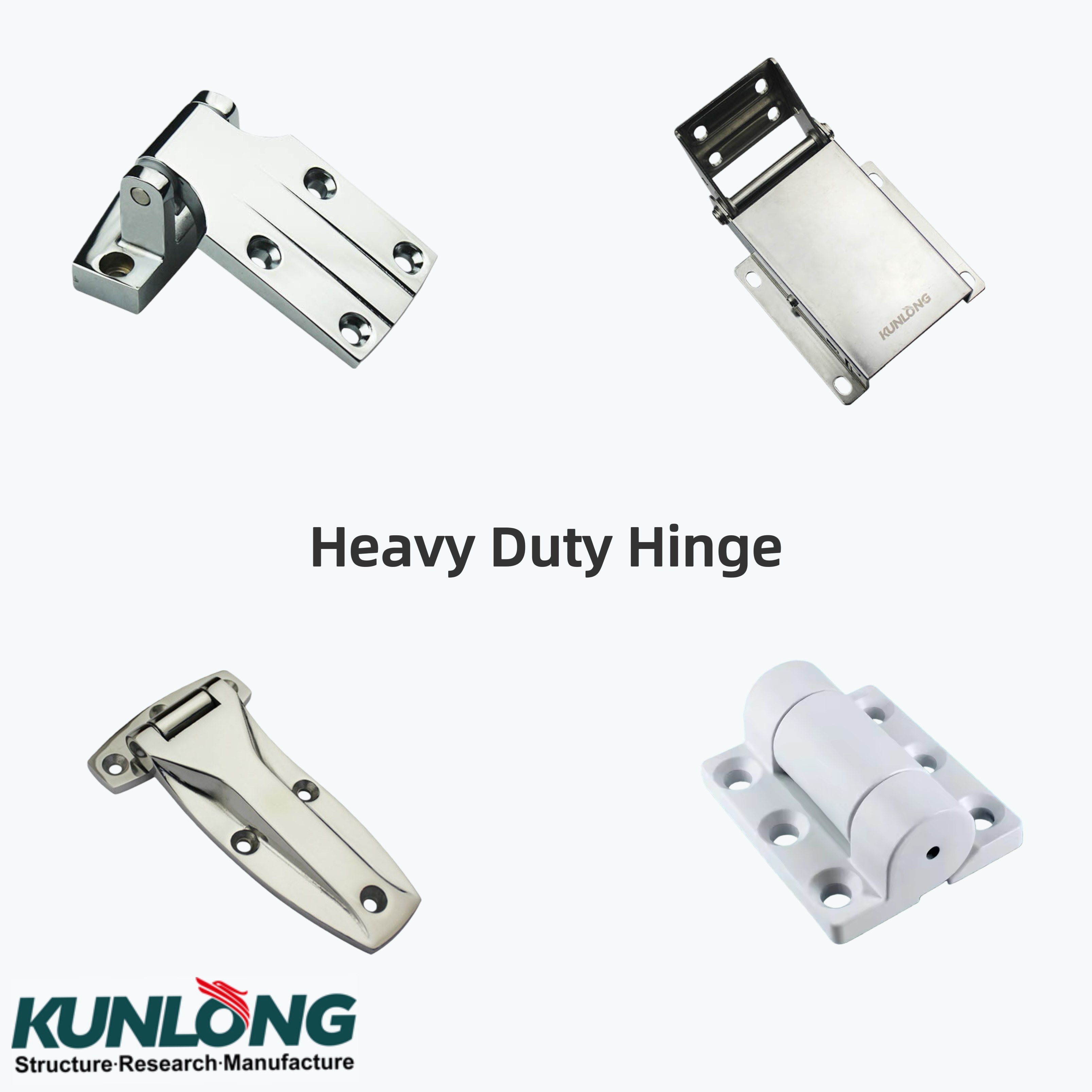

Heavy-duty equipment: For industrial cabinets or heavy doors, Heavy Duty Hinges designed for high-load applications ensure safety and long-term durability.

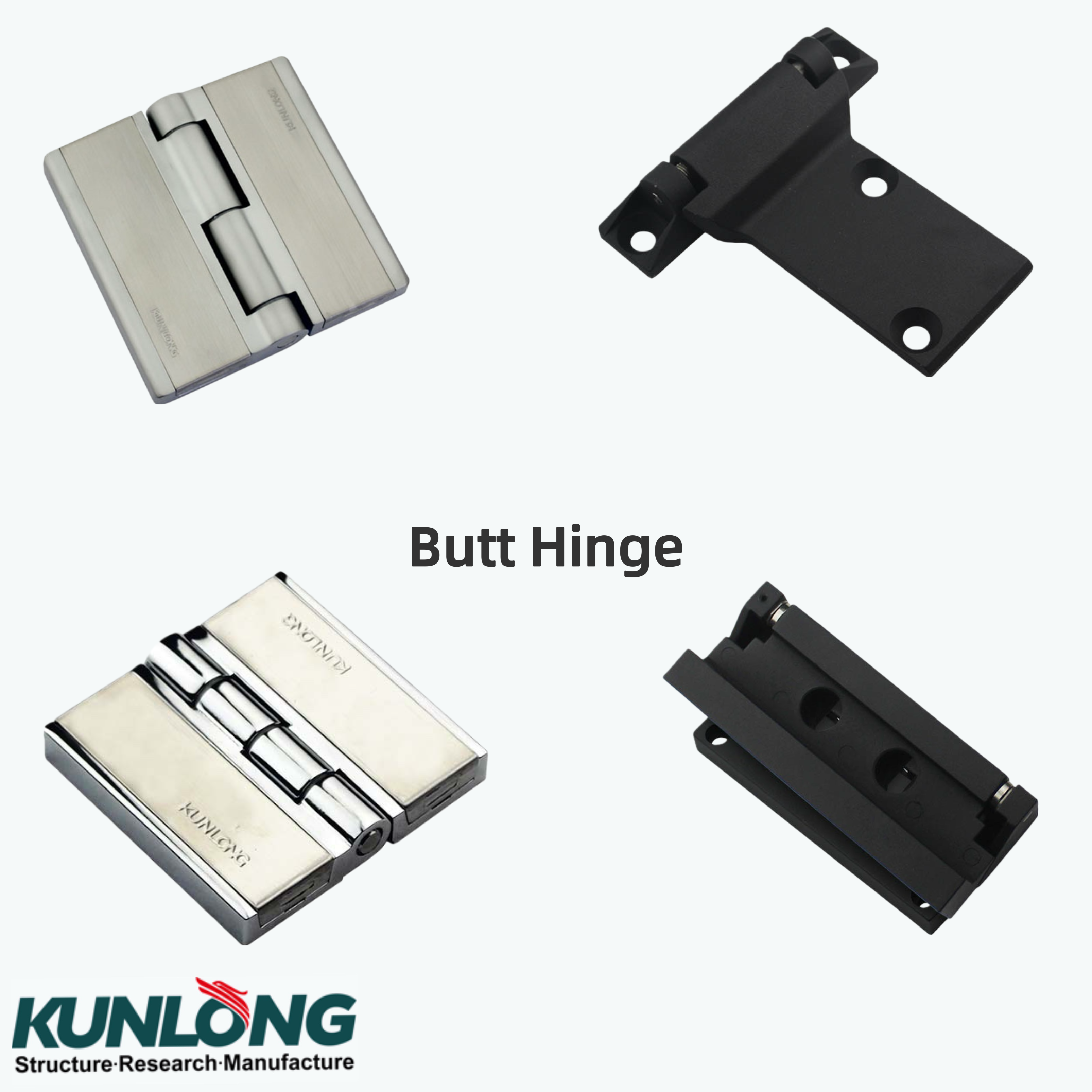

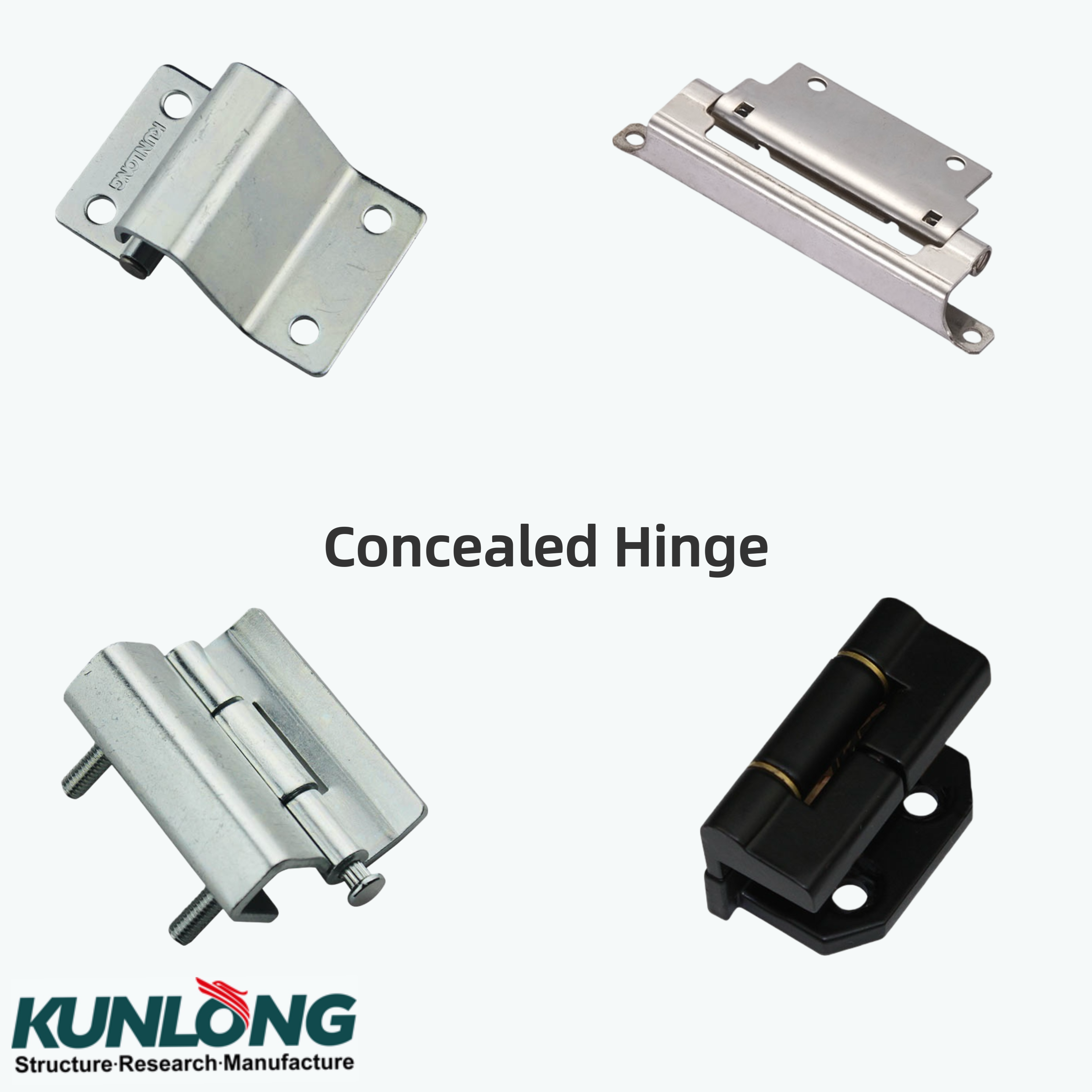

General-purpose equipment: For smaller enclosures without special load requirements, Butt Hinges or Concealed Hinges are sufficient to meet performance needs.
3.Choose According to Functional Requirements
After meeting the basic requirements for strength and durability, special functional hinges can further improve usability and maintenance efficiency.

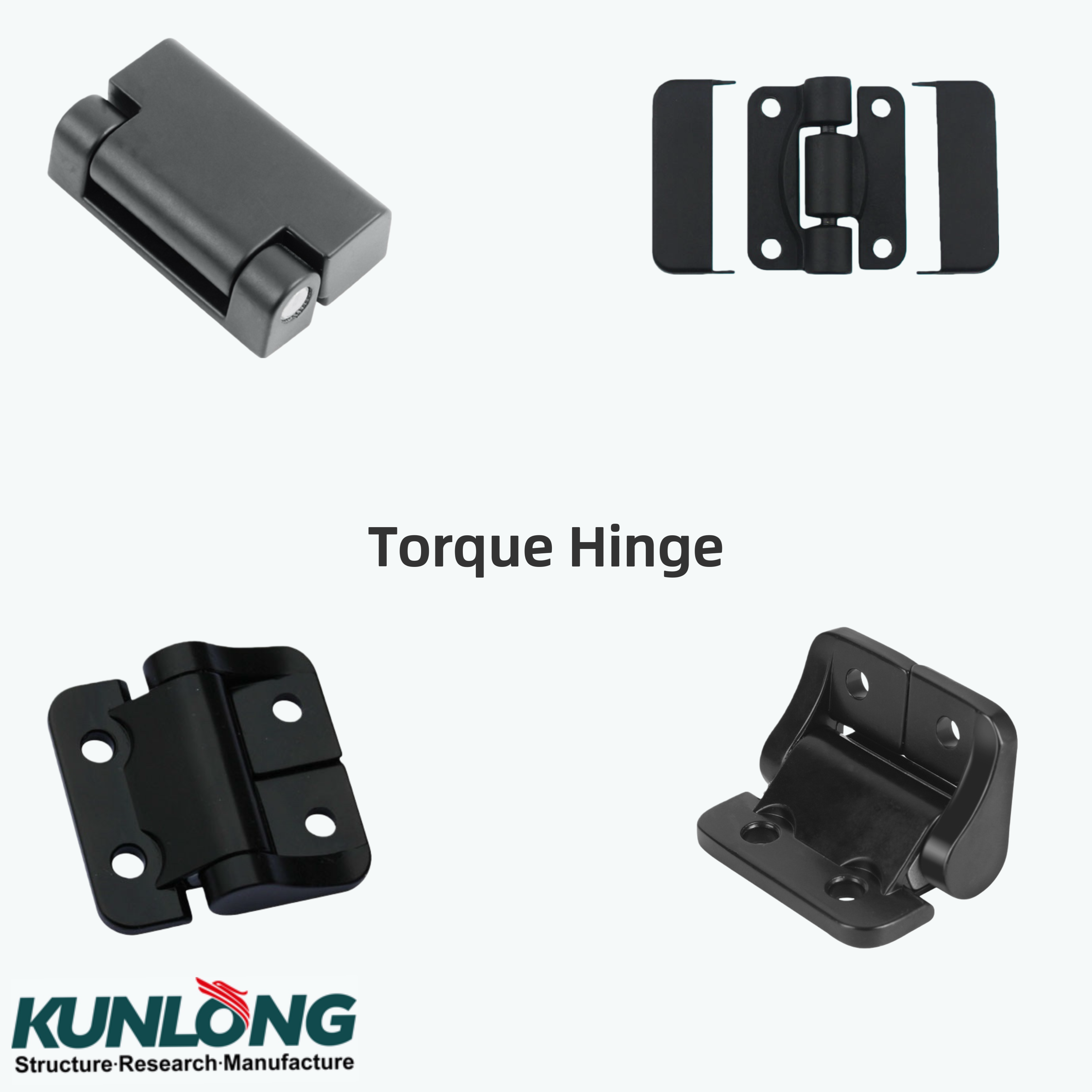

Stay-open or adjustable angle: When operators need both hands free to work inside equipment, a Torque Hinge provides balanced friction, allowing the door to remain steady at any desired position.

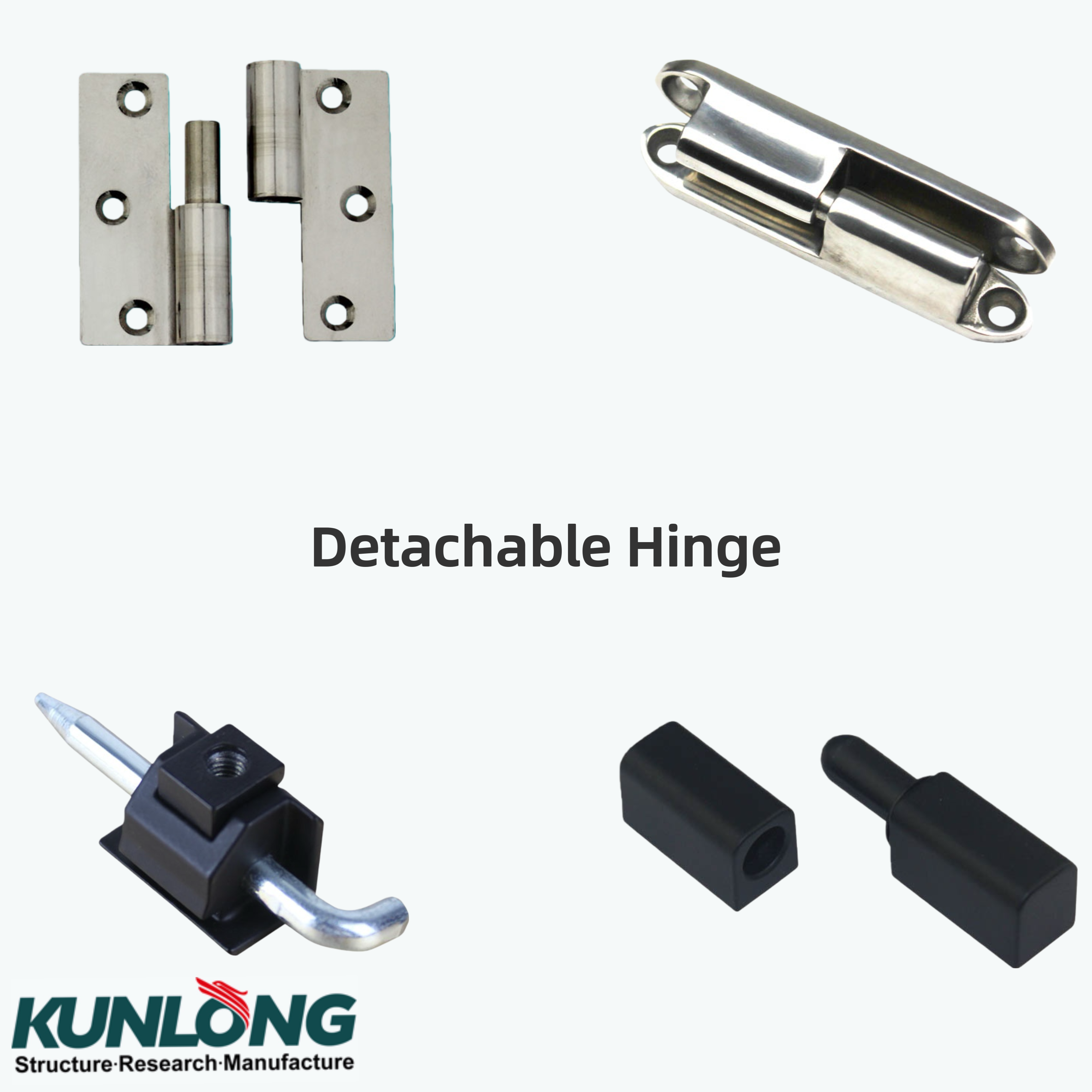

Frequent maintenance: For applications that require frequent panel removal, a Detachable Hinge allows quick disassembly without tools, greatly improving maintenance efficiency.

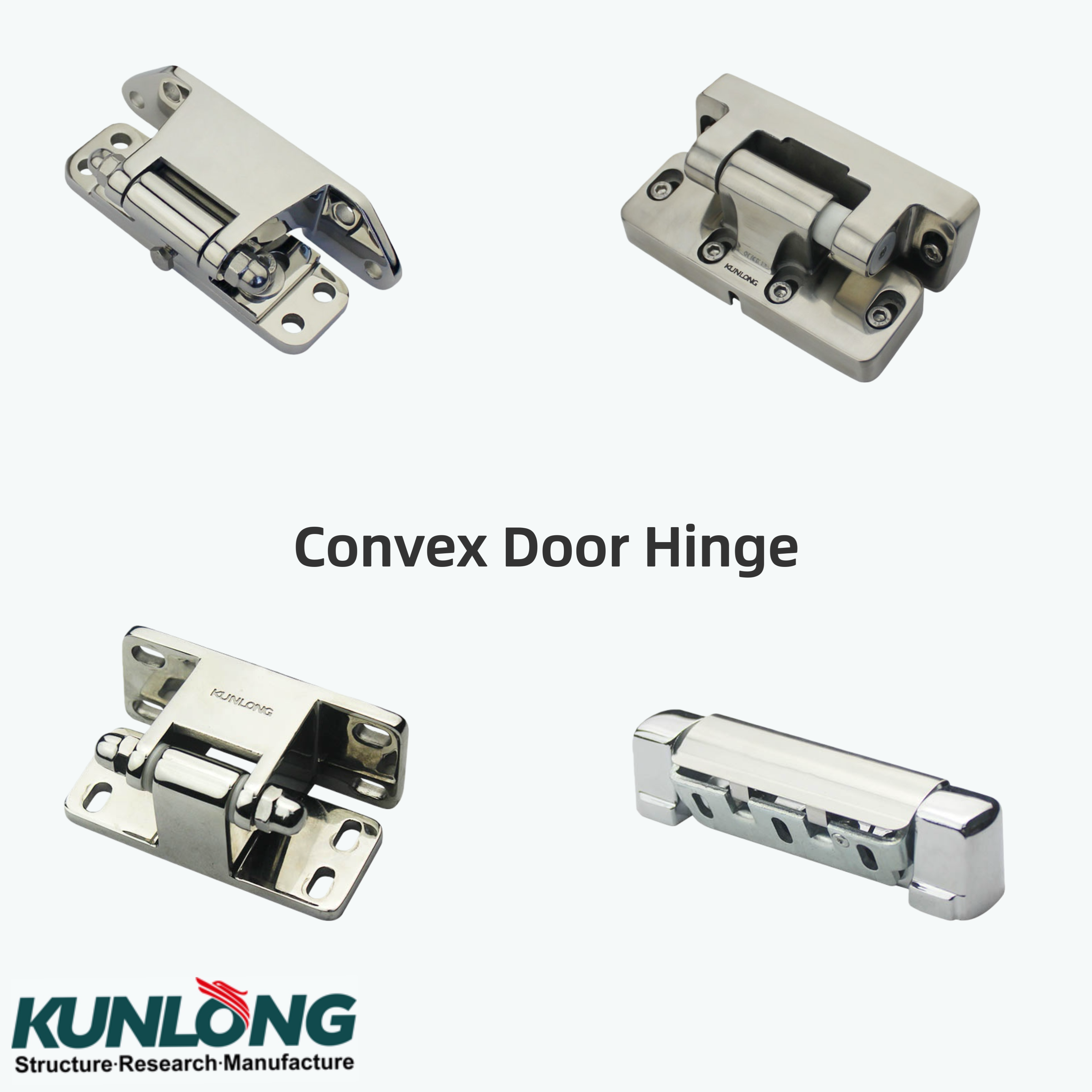

Special structure installation: When doors need to be mounted on curved or angled corners, a Convex Door Hinge offers flexibility and smooth adjustment to fit non-standard designs.

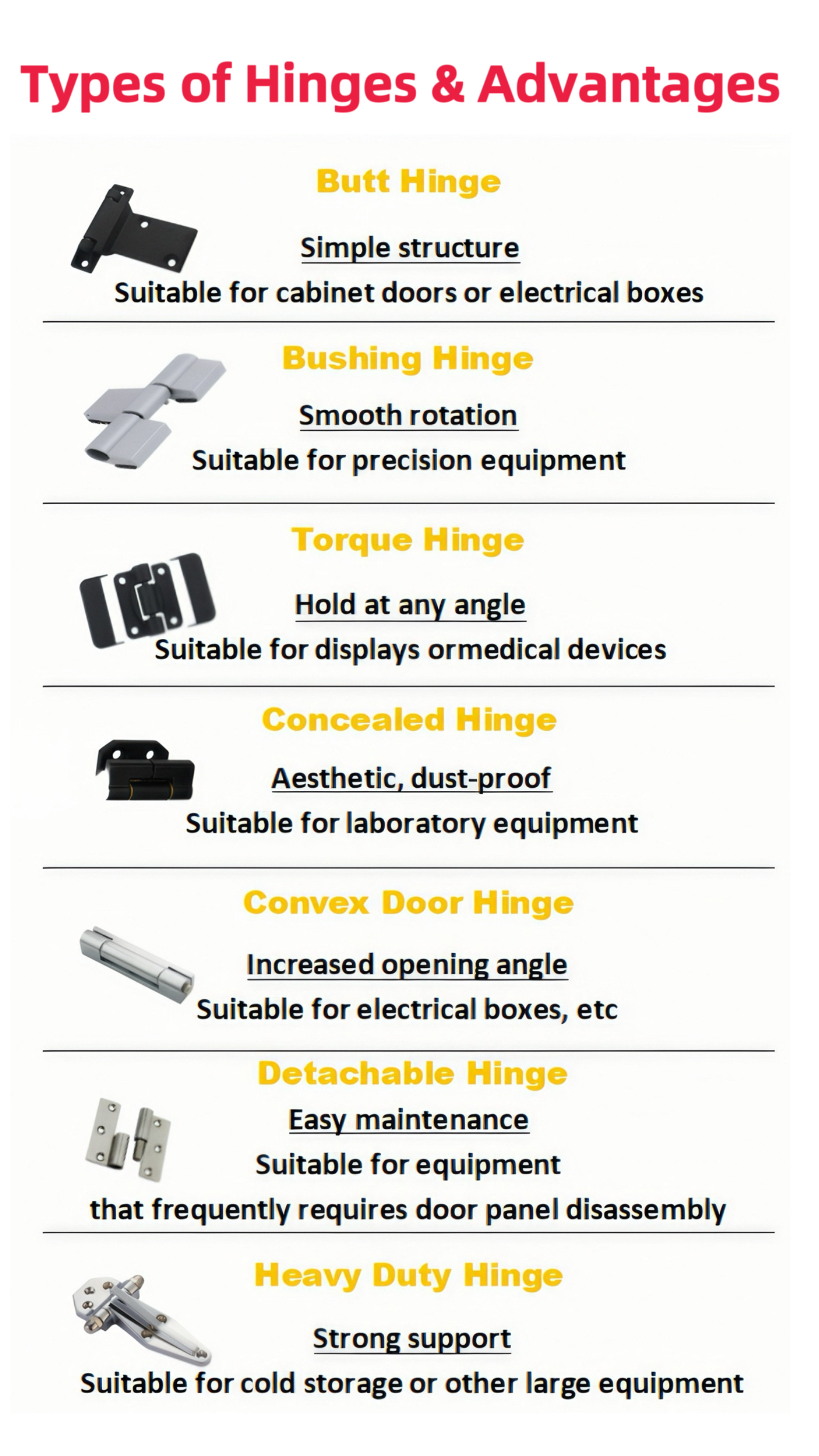

Once the material, load-bearing capacity, and functional requirements are clear, choosing the right type of hinge becomes much easier. Different types of hinges each have their own characteristics:
