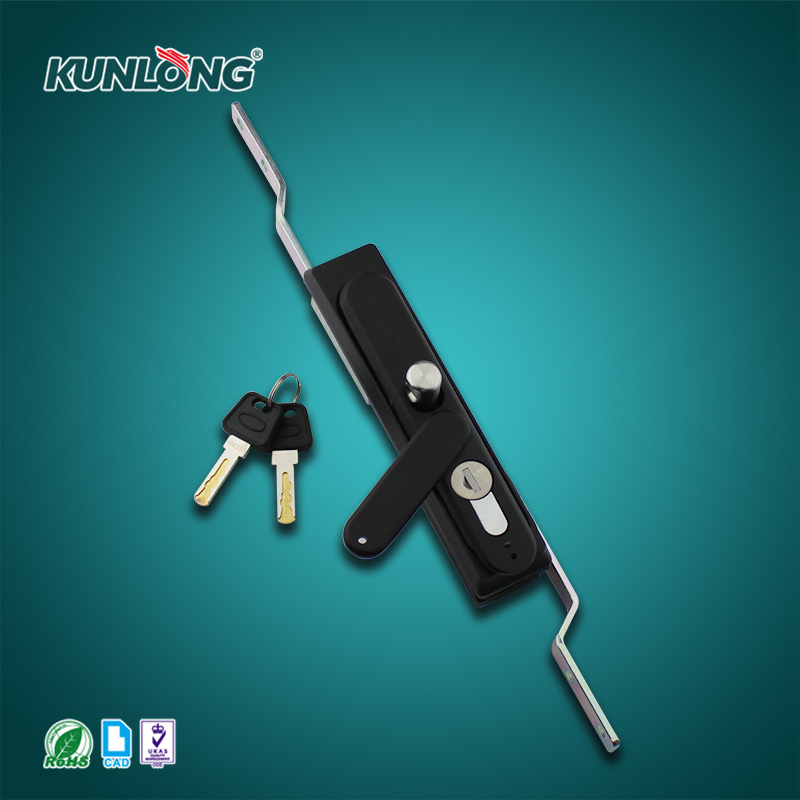

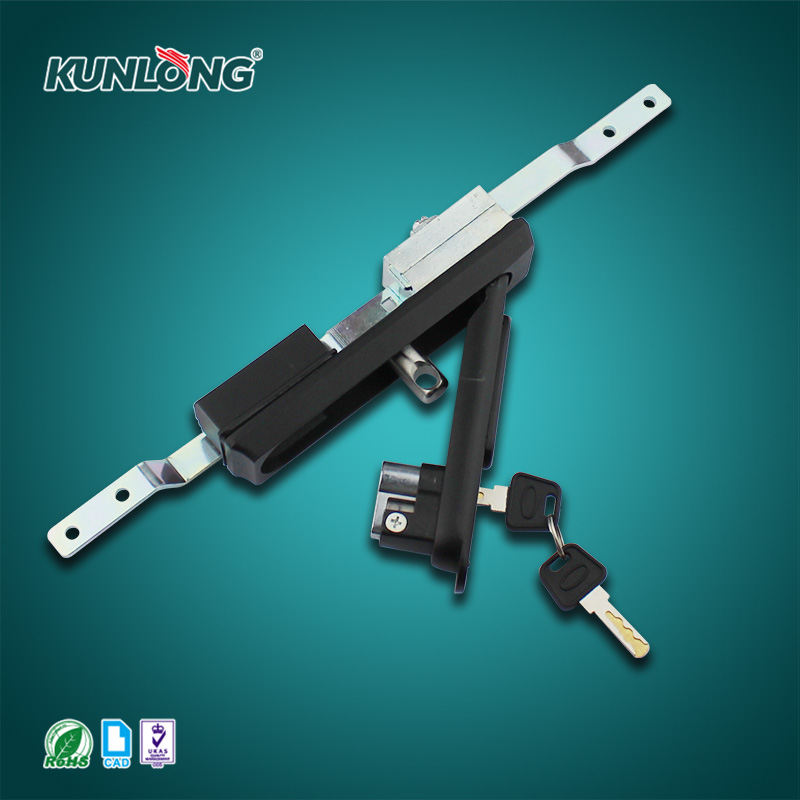

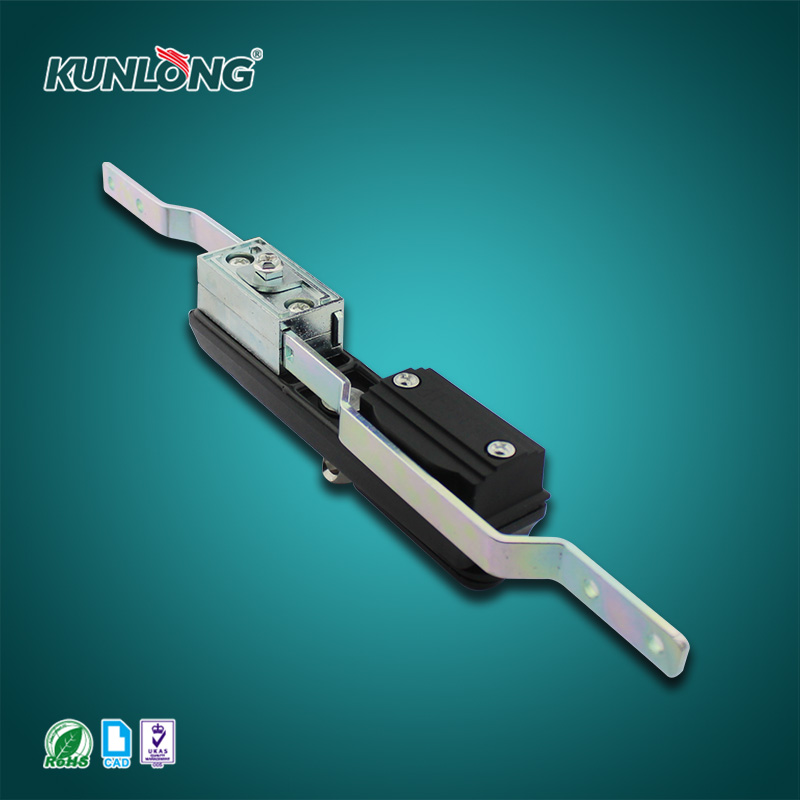

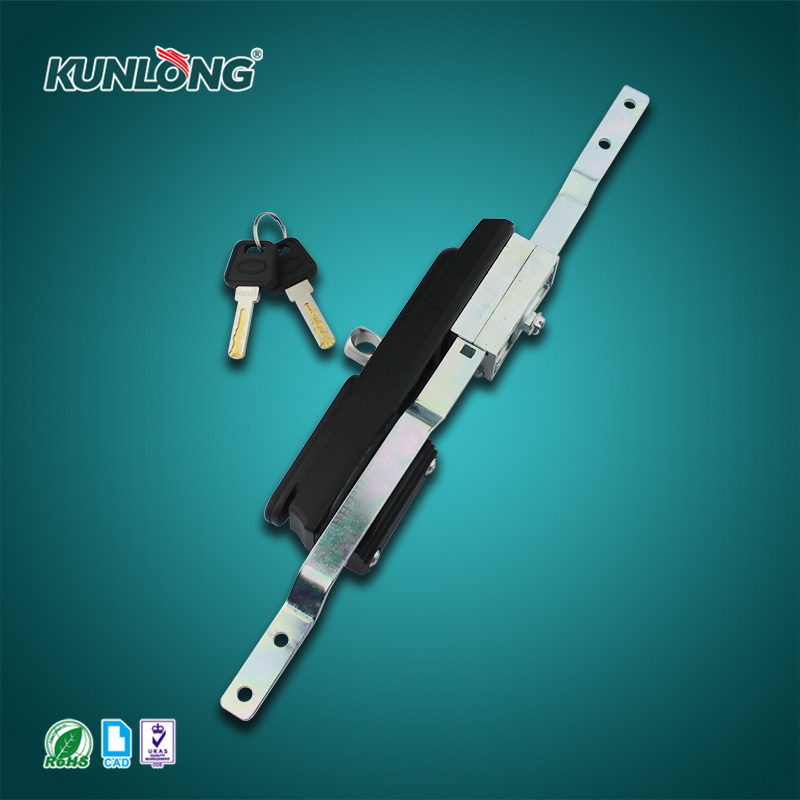

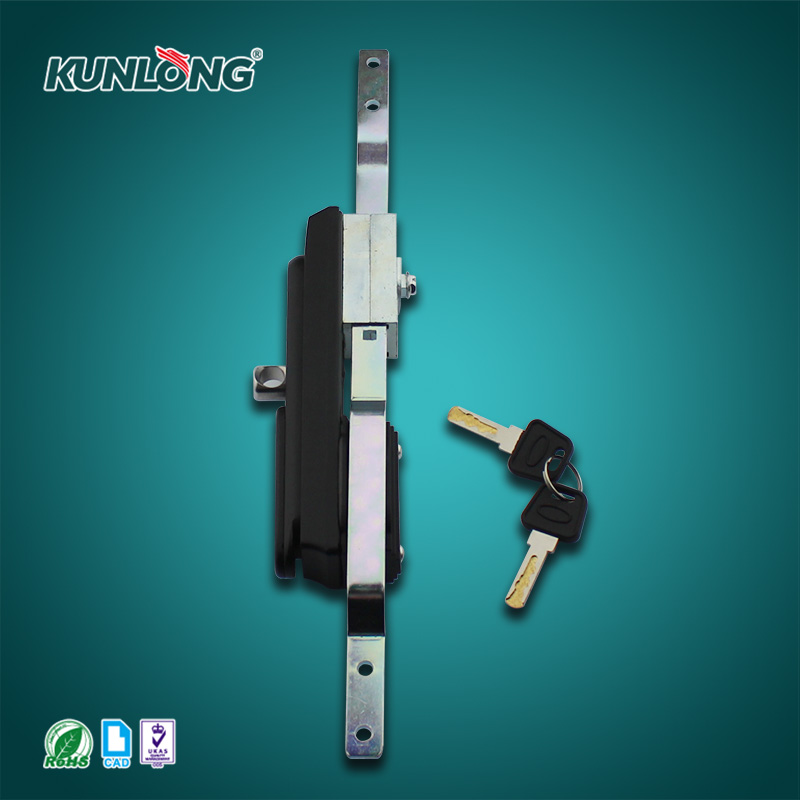

Kunlong SK1-033-1 Control Box Connecting Rod Lock Communication Cabinet Lock Power Box Door Lock

Features:

1.Rotating the handle at 90 degrees, through the transmission mechanism to open or close.

2.Spigot height: 23mm, Panel thickness : 1.0-3.0mm, Telescopic distance :15mm

3.After the connecting rod is removed, it can be used as a single-point latching.

4.Transmission body use as drive plate, with waterproof sealing.

5.Transmission strips position and pawls direction suitable for left or right opening.

6.Padlock can be added.

Material:

Body and Transmission shell: Zinc Alloy (ZDC)

Pawl and connecting rod: Carbon Steel

Finish:

Body and Transmission shell: Black Painted

Pawl and connecting rod: White Zinc Plated

Application: Control box; Power box; Communication cabinet;etc.

Delivery: Common product inquiry is welcome.

Weight: 717g
