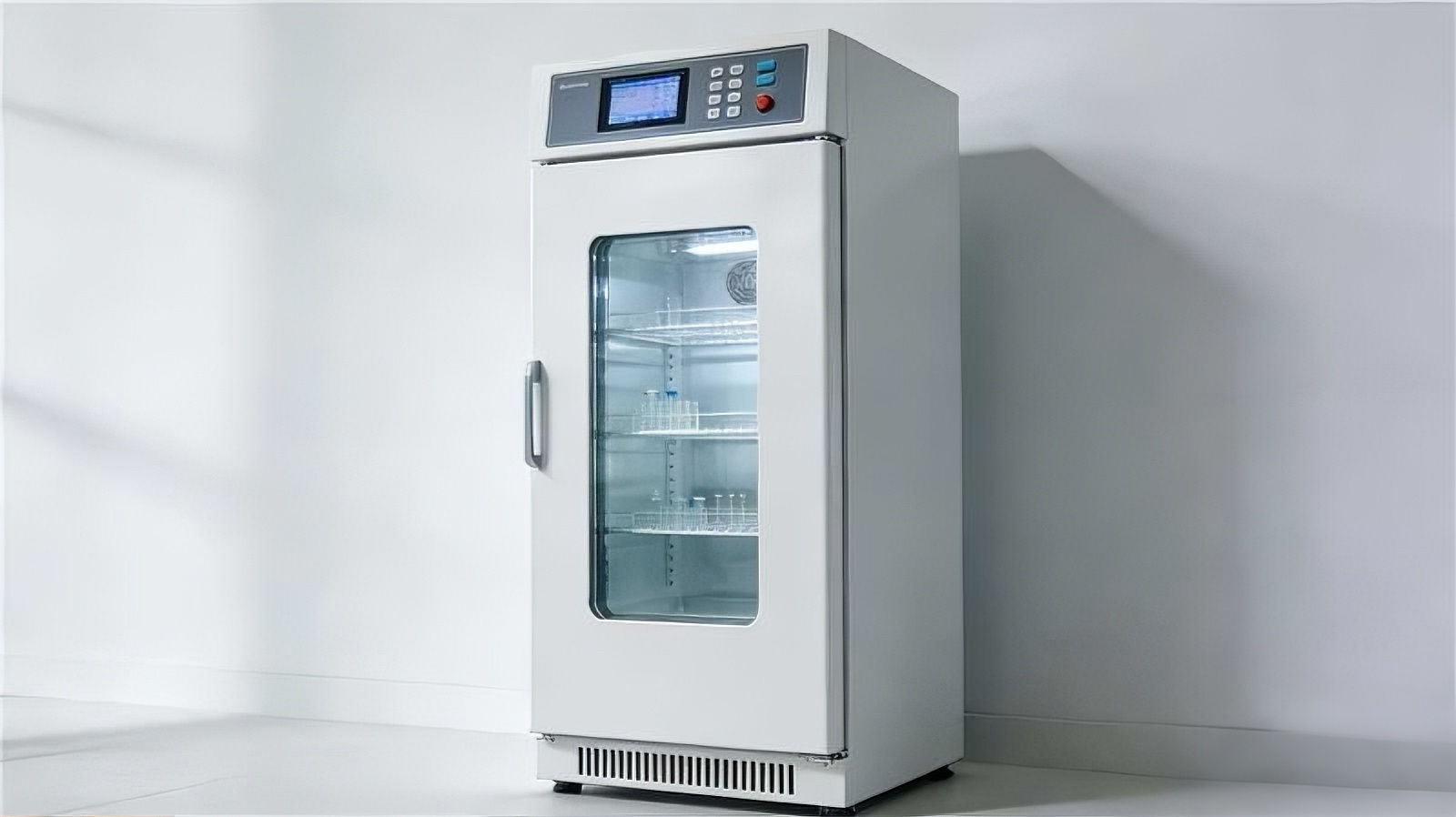

In the structural design of biomedical enclosures, the door system is not only essential to the overall appearance of the equipment but also plays a critical role in sealing reliability, operational safety, and long-term stability. In application scenarios such as sample storage, laboratory support, and medical protection, enclosure doors are required to maintain consistent sealing performance and structural accuracy while withstanding frequent opening and closing.
For this reason, the selection of door hardware components typically focuses on key factors including sealing capability, structural strength, suitability for clean environments, and installation stability. Among these components, handles and hinges serve as fundamental elements in achieving these performance objectives.
Structural Role of Sealed Handles in Biomedical Enclosures：
In biomedical enclosure applications, door handles are not limited to basic opening and closing functions. They also play an essential role in applying force and positioning the door during the sealing process. A well-designed sealed handle can provide a stable compression stroke in the closed position, ensuring that the sealing gasket functions effectively.

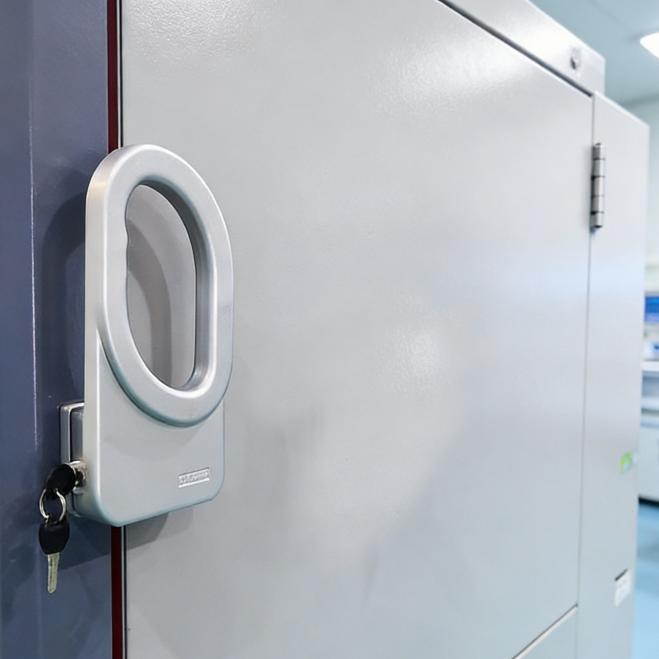

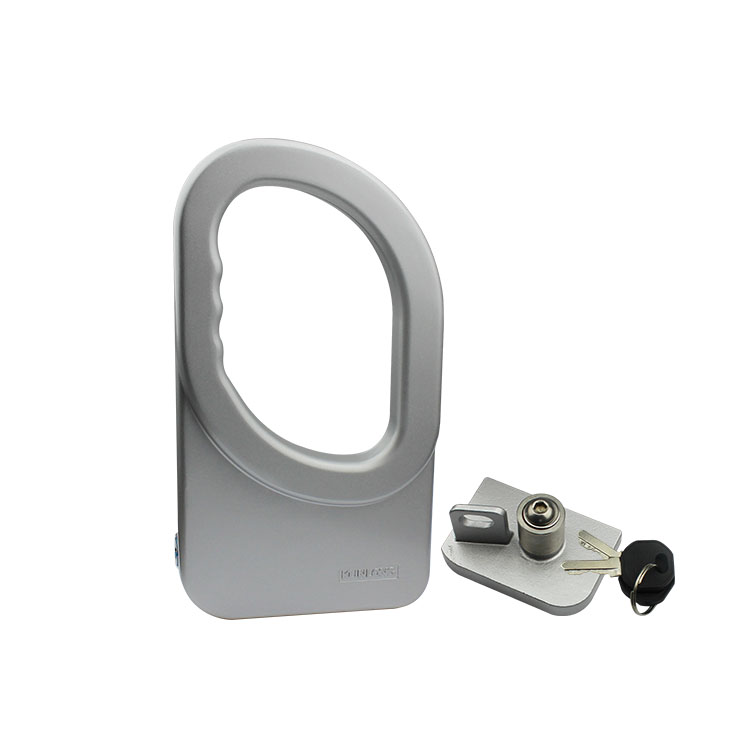

For such applications, sealed handles with a compression mechanism are often better suited to equipment requirements. One representative example is the Shangkun SK1-606R sealed handle, which demonstrates the practical advantages of this structure in biomedical enclosures:
New appearance patent design
Clean, streamlined styling that aligns with the neat, professional aesthetic requirements of medical equipment.
Compression function with approximately 15 mm sealing stroke
The cam-action structure generates stable compressive force during closing, improving contact between the door and sealing gasket and enhancing overall sealing performance.
Adjustable mounting base (horizontal and vertical), with approximately 7 mm adjustment range
Effectively compensates for installation tolerances, simplifies assembly and post-installation adjustment, and improves overall installation efficiency.
Aluminum alloy construction
Lightweight yet structurally strong, helping to control overall equipment weight. The aluminum alloy also offers good corrosion resistance, making it suitable for frequent cleaning and long-term use in medical environments.
Application of Hinges in Biomedical Enclosure Door Structures：
Hinges are core load-bearing components in door systems. Their performance directly affects opening smoothness, closing alignment accuracy, and long-term structural stability. In biomedical enclosures, hinges must support the door weight while maintaining precise alignment between the door and enclosure after repeated operation.

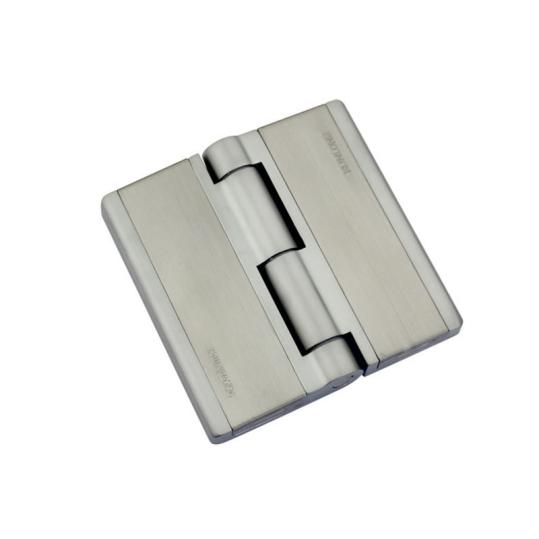

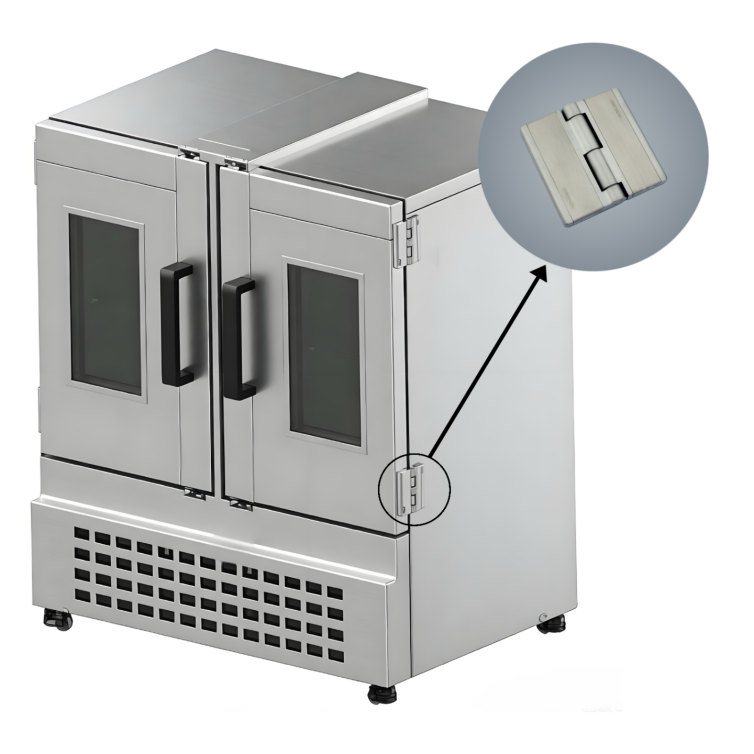

In practical applications, hinges that balance structural reliability with a clean exterior appearance are particularly suitable for medical equipment. The Shangkun SK2-003-2J hinge serves as an example:
Stainless steel cover plate with concealed installation
Leaves no visible mounting marks after installation, improving overall appearance and reducing cleaning blind spots—an important consideration for medical environments.
Left- and right-hand opening design with a maximum opening angle of 125°
Facilitates internal access and routine maintenance, enhancing operational flexibility and user convenience.
Zinc alloy body construction
Provides sufficient strength to support door weight and withstand frequent opening and closing. The zinc alloy also offers good wear resistance, contributing to a long service life.
If you would like to learn more about hardware solutions for biomedical enclosures, feel free to contact the Shangkun team. We are happy to provide professional recommendations to help your equipment operate more stably and efficiently.
