The Application And Technical Value of Cam Locks in Industrial Enclosure Structures

In various industrial equipment, electrical control cabinets, and metal enclosure structures, the door locking system may appear small in size, yet it directly affects equipment safety, structural stability, and overall protection performance. As one of the most widely used basic locking solutions, the cam lock is extensively applied in industrial manufacturing due to its compact structure, convenient installation, and strong adaptability.

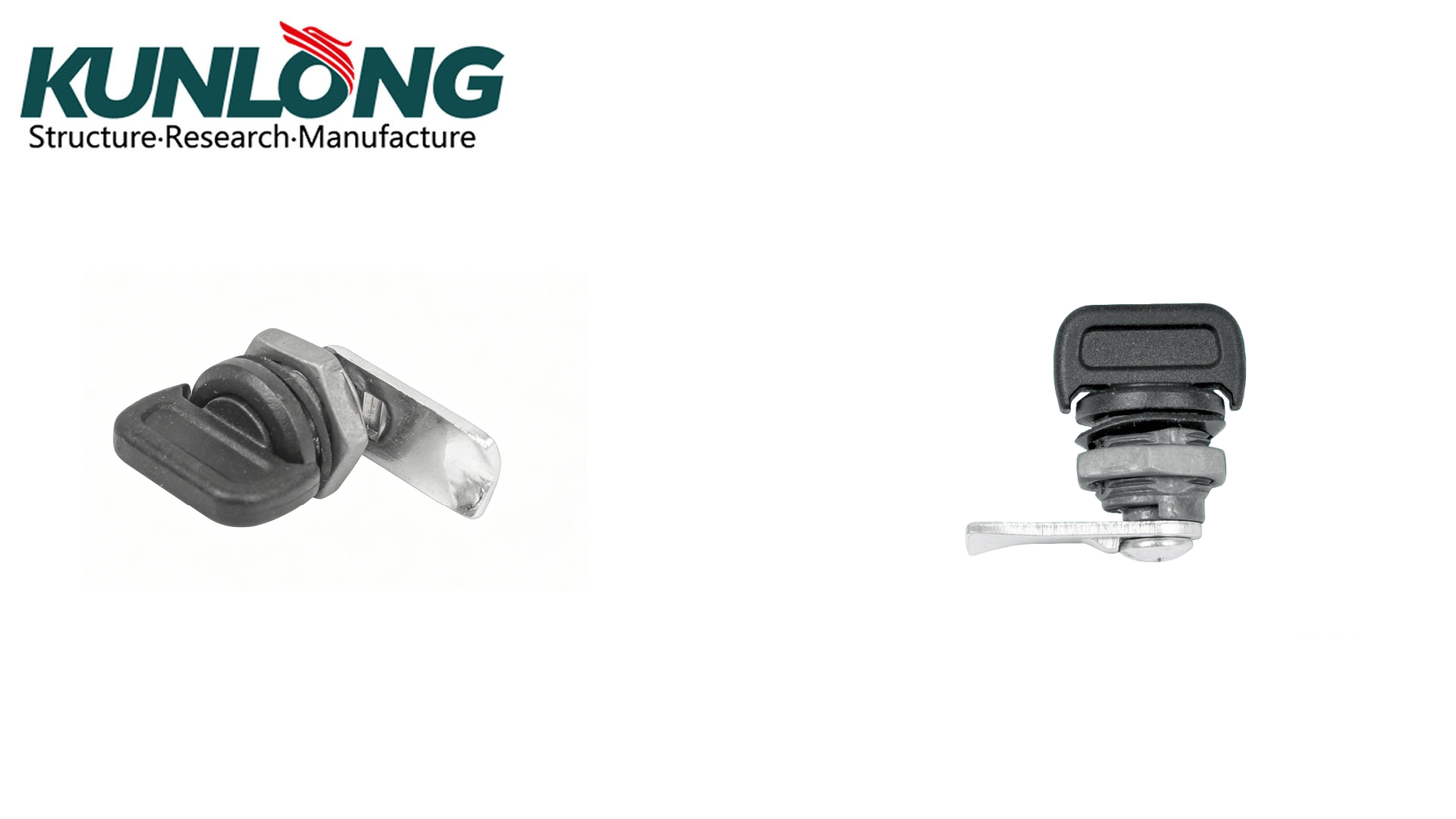

From a structural perspective, a cam lock operates by rotating an internal cam through 90° or 180° via the key cylinder or actuator, creating mechanical engagement between the door panel and the cabinet frame. When the lock is turned, the cam moves along a circular path and engages with the strike or frame behind the panel, completing the locking action. Although simple in construction, the force transmission path is clear and efficient, enabling reliable locking performance within limited installation space. This rotary locking mechanism makes cam locks particularly suitable for standardized panel cutouts, facilitating mass production and assembly.

In industrial environments, cam locks not only provide basic security but also play an important role in structural stability. In outdoor equipment, communication cabinets, or environments subject to light vibration, insufficient door compression may lead to gaps or loosening, which can compromise sealing performance. By selecting the appropriate cam length and offset, cam locks can generate a certain degree of compression force on the door panel, thereby improving overall structural firmness.

Cam locks are also significant in protection rating design. When used in combination with sealing gaskets, they help enhance the contact between the door and frame, supporting equipment in achieving required IP protection levels. Such applications are particularly common in new energy storage systems, power distribution cabinets, and outdoor control units.

From a material selection standpoint, different operating environments require different performance characteristics. Zinc alloy is suitable for general industrial applications, offering good cost-effectiveness. Stainless steel is more appropriate for high-humidity or corrosive environments. For lightweight equipment or applications requiring electrical insulation, engineered plastics may be used. Proper material and surface treatment selection help extend service life and reduce maintenance costs.

In modern industrial equipment design, although the cam lock is considered a basic hardware component, its reliability directly influences long-term operational performance. By matching the appropriate structural configuration and material solution, cam locks can not only meet fundamental locking requirements but also enhance overall equipment quality and engineering reliability.
