The Application Value of T-Hinges in Industrial Structural Design

In industrial equipment, metal enclosures, and heavy-duty door assemblies, hinges serve not only as opening components but also as long-term load-bearing structural elements. Among common hinge types, the T-hinge stands out for its enhanced load capacity and structural stability, making it a widely adopted solution in industrial door systems.

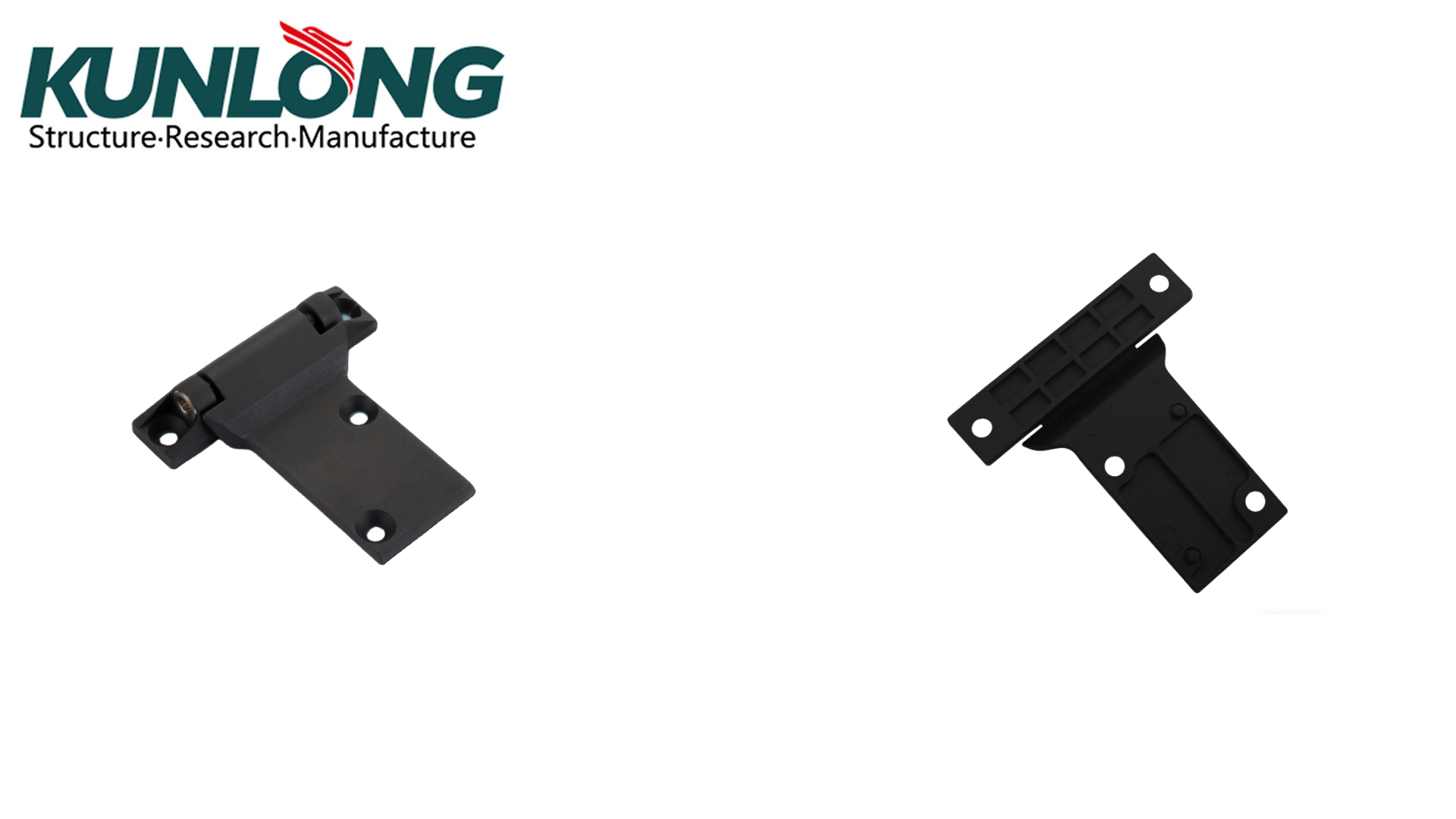

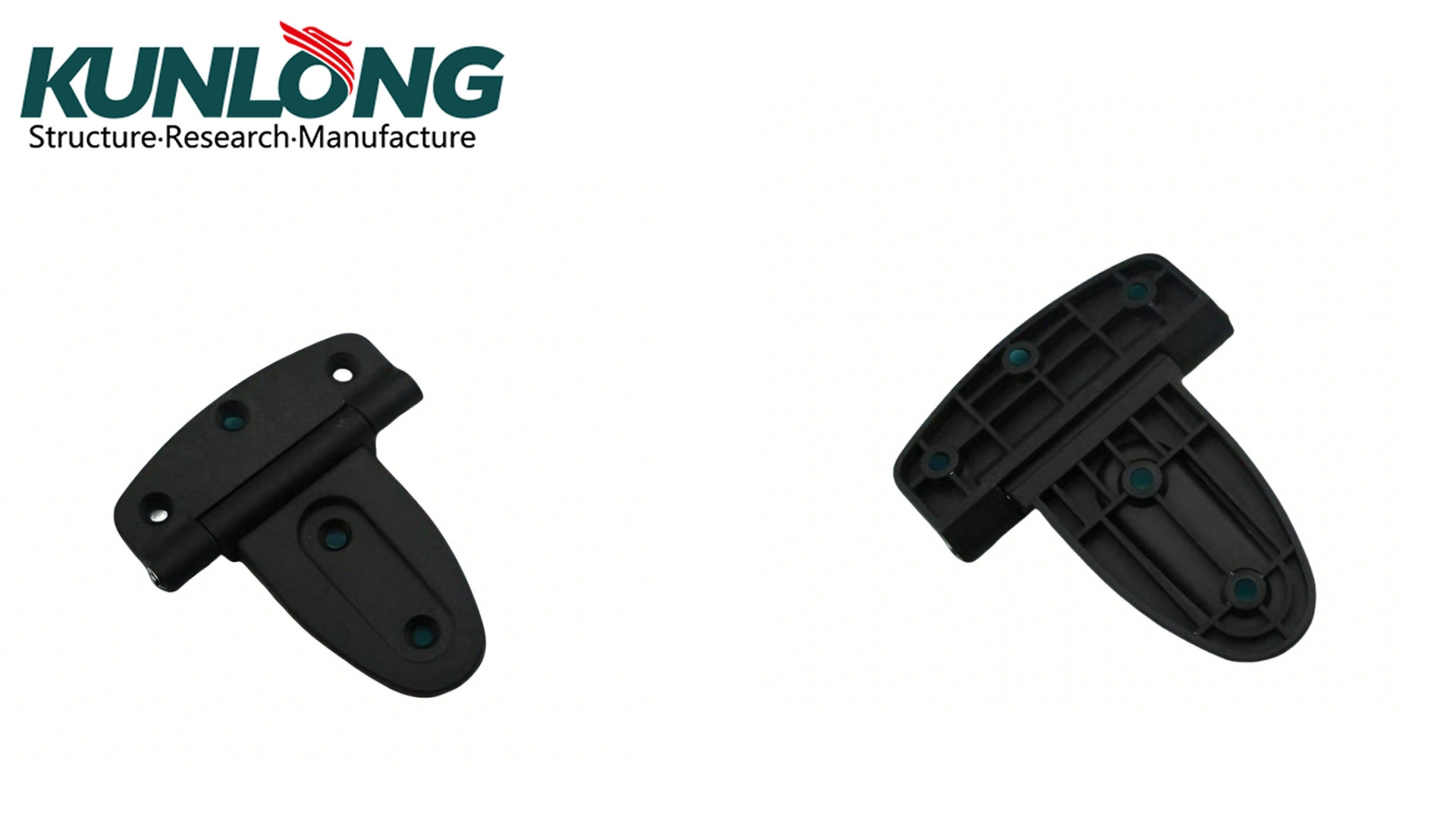

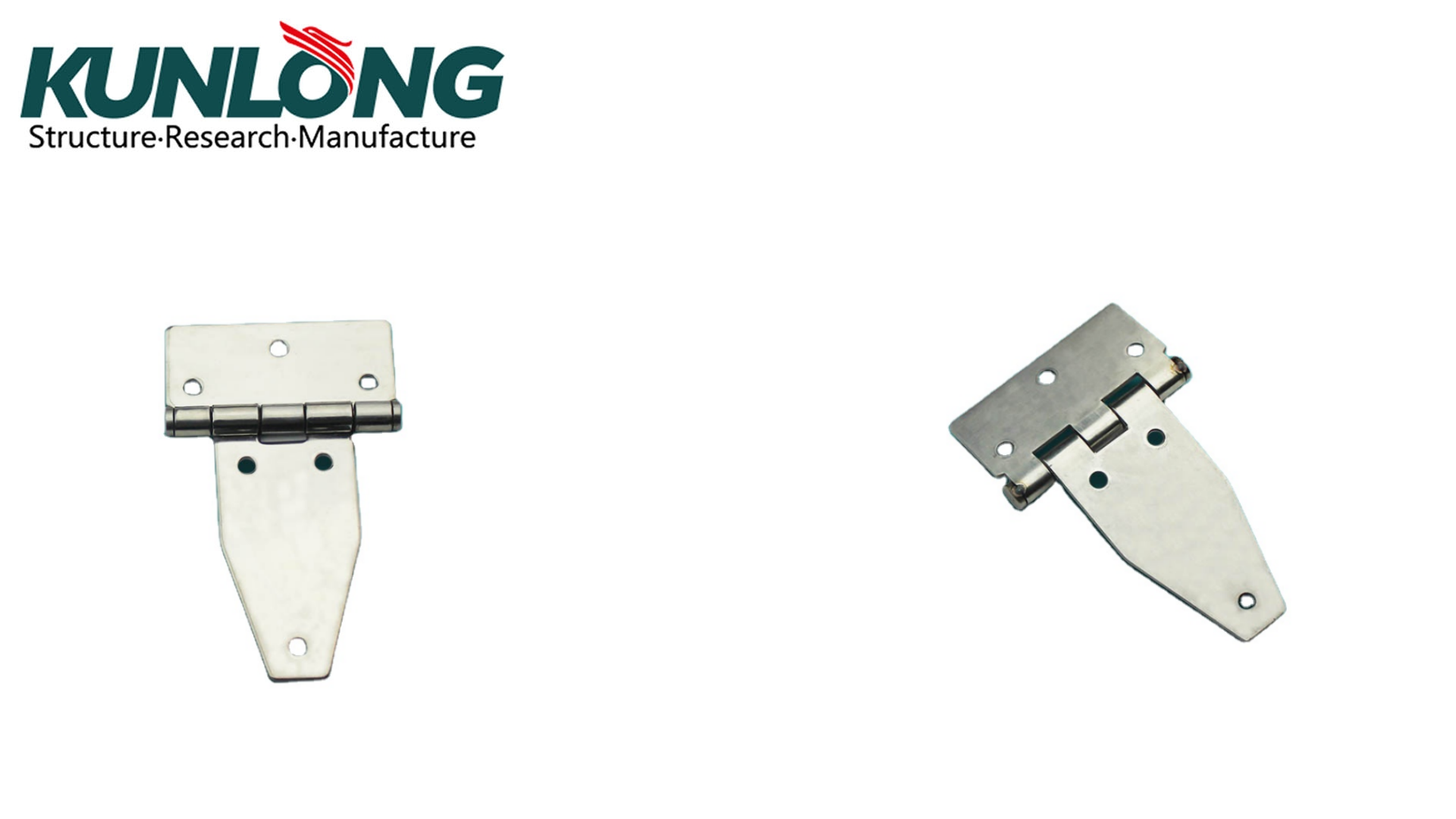

A T-hinge features an extended vertical leaf combined with a horizontal mounting leaf, forming a distinctive “T” configuration. Compared with standard butt hinges, the extended mounting surface increases the contact area between the door panel and the frame. This enlarged interface allows loads to be distributed more evenly across the fastening points.

During operation, door assemblies are subjected to gravity, shear force, and dynamic torque generated during opening and closing cycles. By extending the lever arm and optimizing the load transfer path, the T-hinge reduces localized stress concentration and minimizes fatigue risk at connection points. Rather than relying solely on increased material thickness, this structural approach improves overall stability through mechanical load distribution.

From a structural engineering perspective, industrial doors often experience frequent operation, vibration, and temperature fluctuations. When stress is concentrated at hinge mounting areas, loosening, misalignment, or micro-deformation may occur over time. By increasing the mounting footprint and reinforcing hinge pin strength, T-hinges provide a more stable and durable connection between the door and enclosure frame.

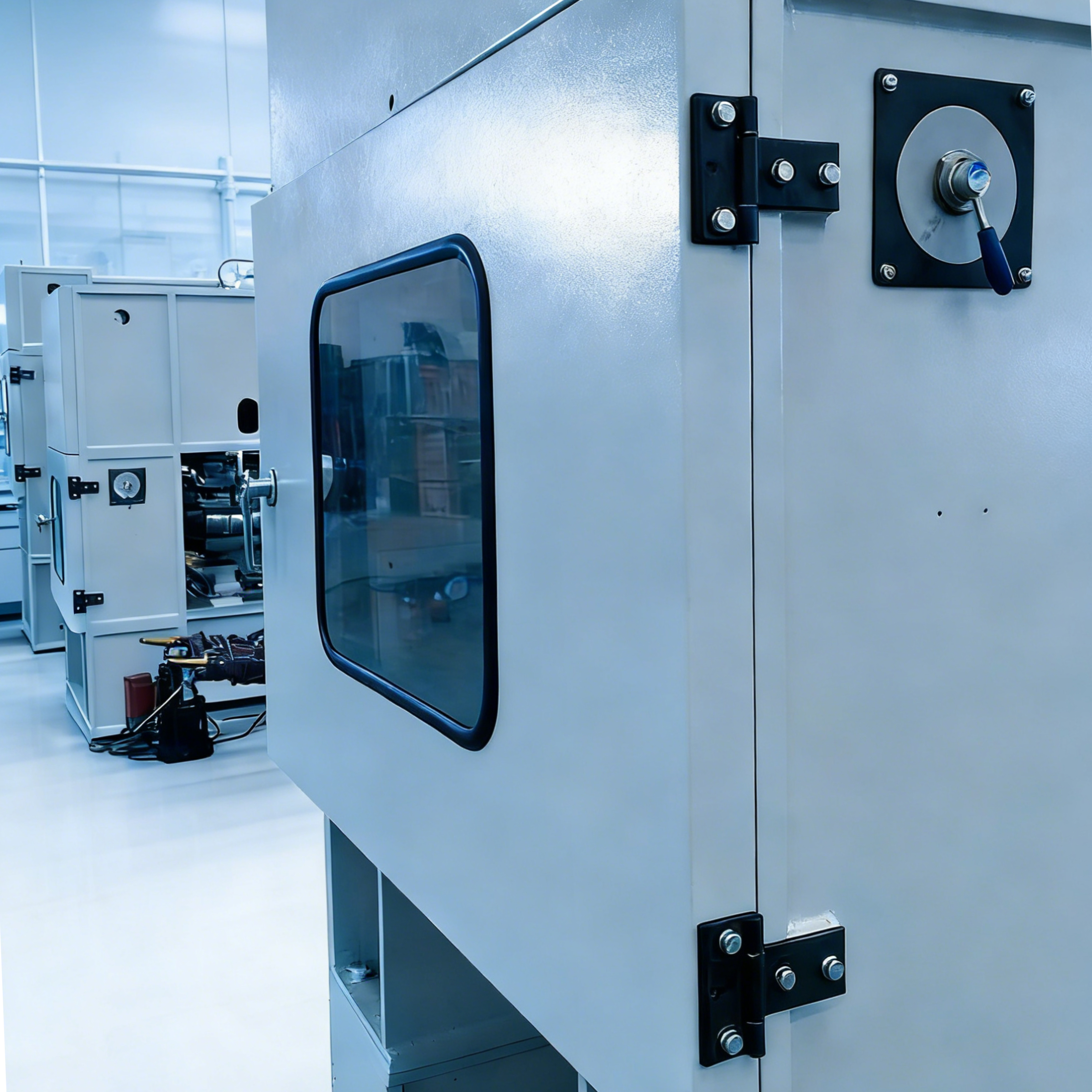

T-hinges are commonly used in industrial control cabinets, cold chain equipment doors, outdoor toolboxes, and special vehicle compartments—applications where larger panel sizes, high usage frequency, or vibration exposure demand reliable structural support. In such environments, hinge stability directly affects service life and maintenance intervals.

At the system design level, hinges function as hidden load-bearing points within the overall enclosure structure. Structural failures often originate at connection interfaces rather than at the panel itself. Therefore, optimizing hinge selection is frequently more effective than simply increasing panel thickness or reinforcing the frame.

By integrating properly specified T-hinges, engineers can enhance structural durability, reduce maintenance frequency, and improve operational stability—ultimately strengthening overall equipment reliability.
