The Role and Selection Key Points of Panel Locks in Communication Cabinets

In the structural design of communication cabinets, the door system directly affects equipment security, protection level, and maintenance efficiency. As the core locking component of the door, the panel lock not only provides door locking functionality but also contributes to sealing protection and operational management, making it a critical element for the overall reliability of the cabinet structure.

Core Functions of Panel Locks in Communication Cabinets：

1.Door Locking and Structural Stability

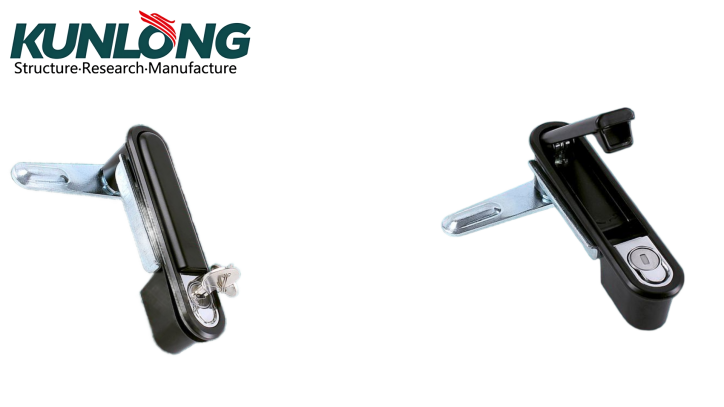

The panel lock engages with the cabinet latch through its latch tongue to achieve door compression and fixation. The locking effect depends not only on the tongue size matching but also on the lock body’s structural strength and load design. In outdoor base stations or environments with vibration, cabinets are exposed to temperature fluctuations and micro-vibrations over time. If the lock is unevenly loaded or lacks structural rigidity, loosening may occur, affecting door alignment and sealing performance. Therefore, panel locks should feature a stable load-bearing structure, reliable vibration resistance, and long-term deformation resistance to ensure that the door remains securely locked despite repeated use and environmental changes.

2. Protection Level Assurance and Sealing Coordination

Outdoor communication cabinets often require IP54, IP65, or higher protection levels. Door sealing performance relies not only on the gasket material but also on the clamping force provided by the lock. The panel lock creates compression by rotating the latch tongue, ensuring the door panel fully engages with the gasket. Insufficient clamping force or poor design may lead to gaps or water ingress over time. Panel locks with sealing pads or waterproof designs enhance the overall protective reliability of the cabinet, ensuring safe and stable operation in outdoor environments.

3. Maintenance Management and Security Control

Communication cabinets generally follow standardized maintenance protocols, requiring clear access control for different sites or equipment areas. As the core locking component of the door, the lock cylinder structure and key management method of the panel lock directly impact the cabinet’s security level and management efficiency. In addition, the durability and dust-proof design of the cylinder reduce wear from frequent operation and minimize dust ingress, ensuring smooth and reliable performance over time.

Key Points for Engineering Selection：

During design and selection, the following factors should be emphasized:

1.Material and Corrosion Resistance: Zinc alloy is suitable for general environments, while stainless steel is recommended for high-humidity or coastal scenarios.

2.Latch Tongue Specifications and Clamping Stroke: Choose a straight or bent tongue according to door thickness and latch structure to ensure uniform compression.

3.Mounting Hole and Standardization: Standardized mounting holes facilitate mass production, quick replacement, and future maintenance.

Although the panel lock is a single component within the cabinet, it directly affects door stability, protection level, and long-term reliability. Scientific selection and structural matching are essential to improving the overall quality of communication cabinets. For more lock matching solutions or professional selection guidance, please contact the ShangKun team.
