Sk1-BS1
KUNLONG
20220425032

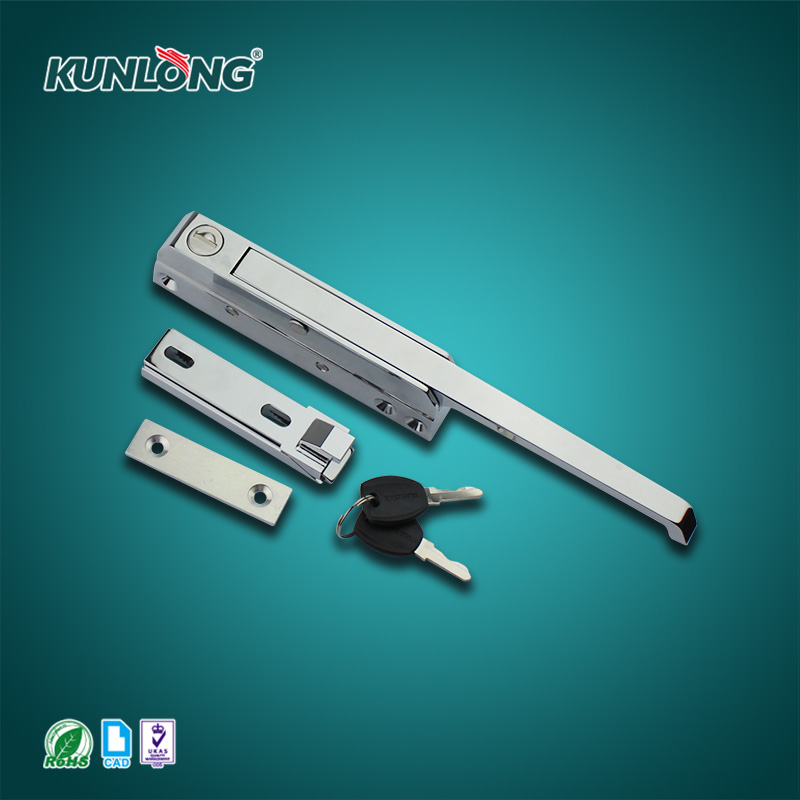

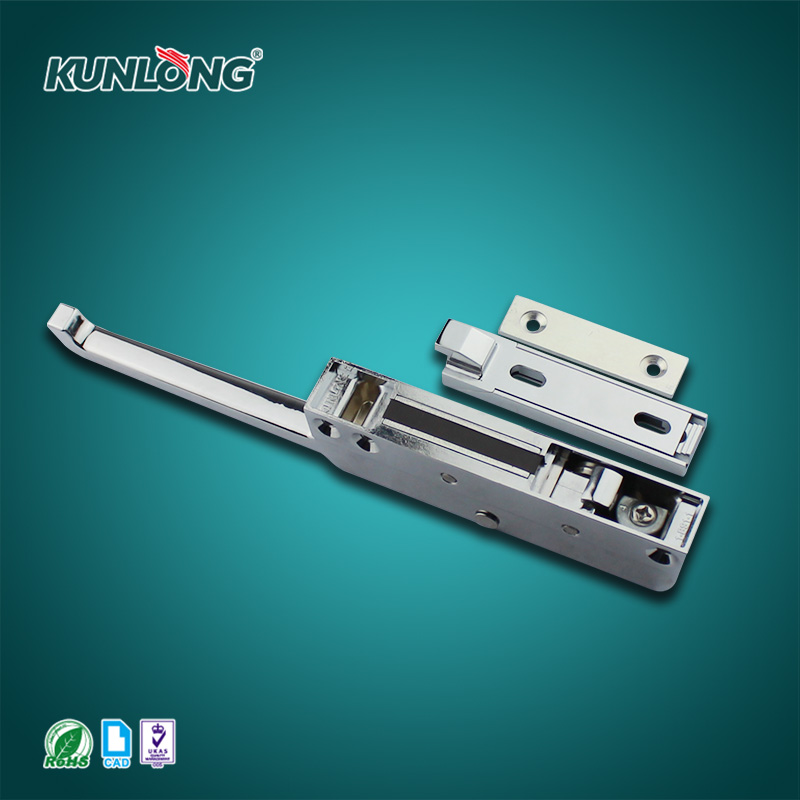

KUNLONG SK1-BS1 Reach-In MAGNETIC-MECHANICAL Latch Door Magnetic Latch
Features:
1.Impact closed,turned the key to open or close.
2.Inner with magnet, and closed by magnet attraction
3.Base with sliding and lifting two adjusted ways
4.Assembling fast,easy to install
5.The maximum opening angle of the handle is 8°.
6.Suitable for left and right side opening.
7. Magnetic force combined with mechanical latching provide the ultimate in positive door closure and sealing.
8.Mechanical latching with cylinder lock offers positive security.
9.Keeps door shut even when adjacent doors are slammed.
10.Two-way strike adjustment compensates for door-sag and gasket wear.
11.Unique design of strike ensures full magnetic attraction at each adjustment.
Specification
Material: Zinc Alloy (ZDC)
Finish: Bright Chrome Plated
Application: Cold storage; Cabinet; Test chamber;etc.

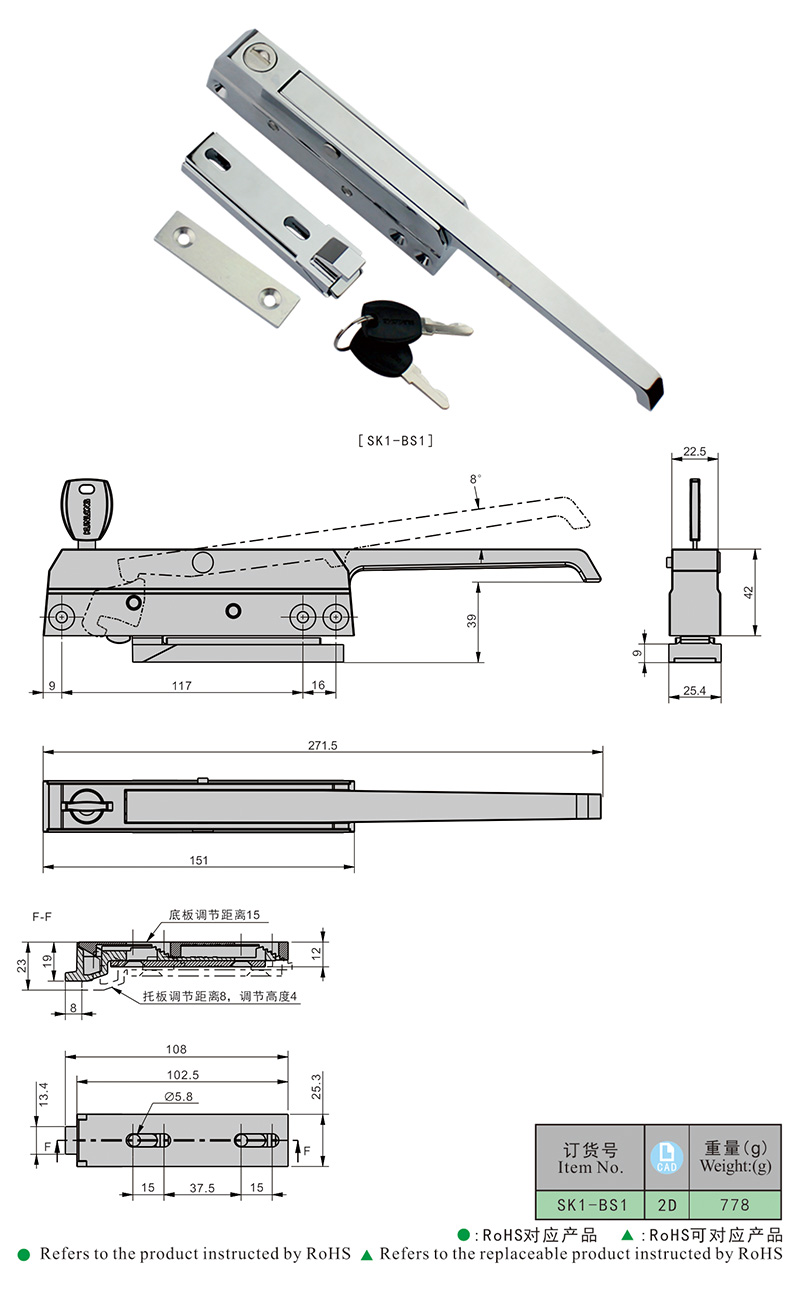

MOUNTING:
Latch is edge mounted; strike is surface mounted. Drilled and countersunk for No. 10 (5.0 mm) screws.
