SG7-7-K-WP
nobengr
20220420024

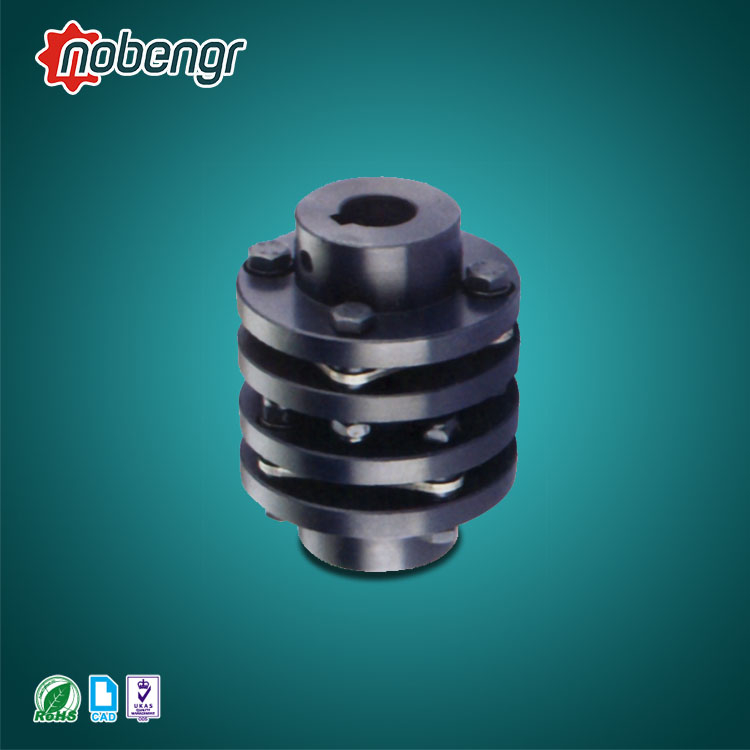

SG7-7-K-WP nobengr Double Disk-type Flexible Coupling
Material: Alloy Steel
Finish: Black Oxide
Features:
1. Using keyway connect, plate springs coupling
2. Zero backlash, disassembly easy
3. Excellent response and high torque capacity
4. Identical clockwise and anticlockwise rotational characteristics
5. Stainless steel plate springs absorb parallel, angular misalignment and shaft end-play
Application: Used for transmission power in kinds of mechanical equipment such as blower fan, pump, chemical industry, petroleum, metallurgy
Remark: Bore dimensions can be customized
SG7-7-K-WP nobengr Double Disk-type Flexible Coupling
Material: Alloy Steel
Finish: Black Oxide
Features:
1. Using keyway connect, plate springs coupling
2. Zero backlash, disassembly easy
3. Excellent response and high torque capacity
4. Identical clockwise and anticlockwise rotational characteristics
5. Stainless steel plate springs absorb parallel, angular misalignment and shaft end-play
Application: Used for transmission power in kinds of mechanical equipment such as blower fan, pump, chemical industry, petroleum, metallurgy
Remark: Bore dimensions can be customized
